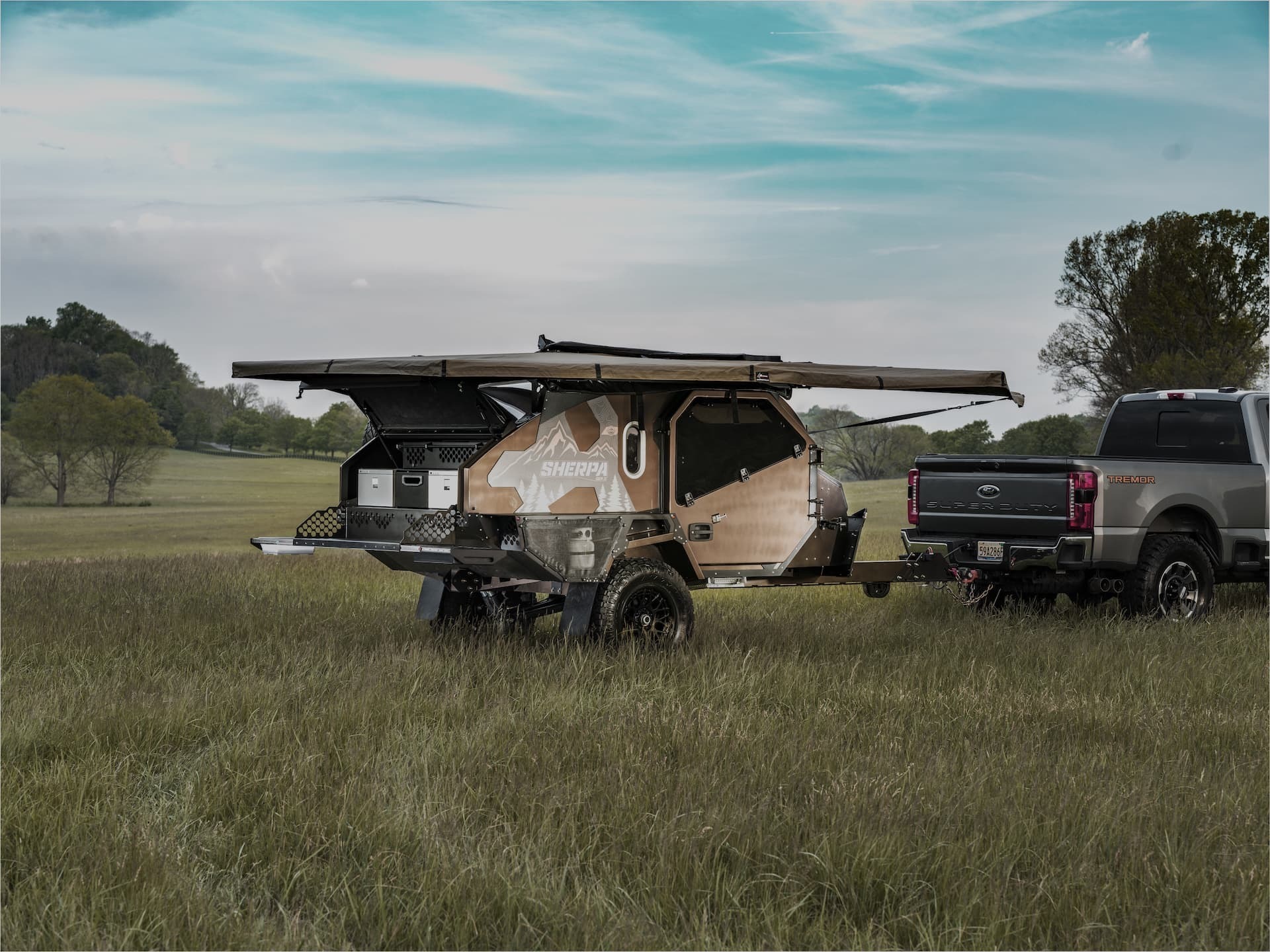

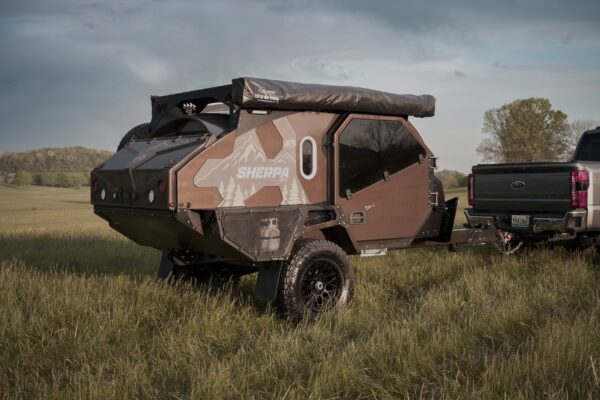

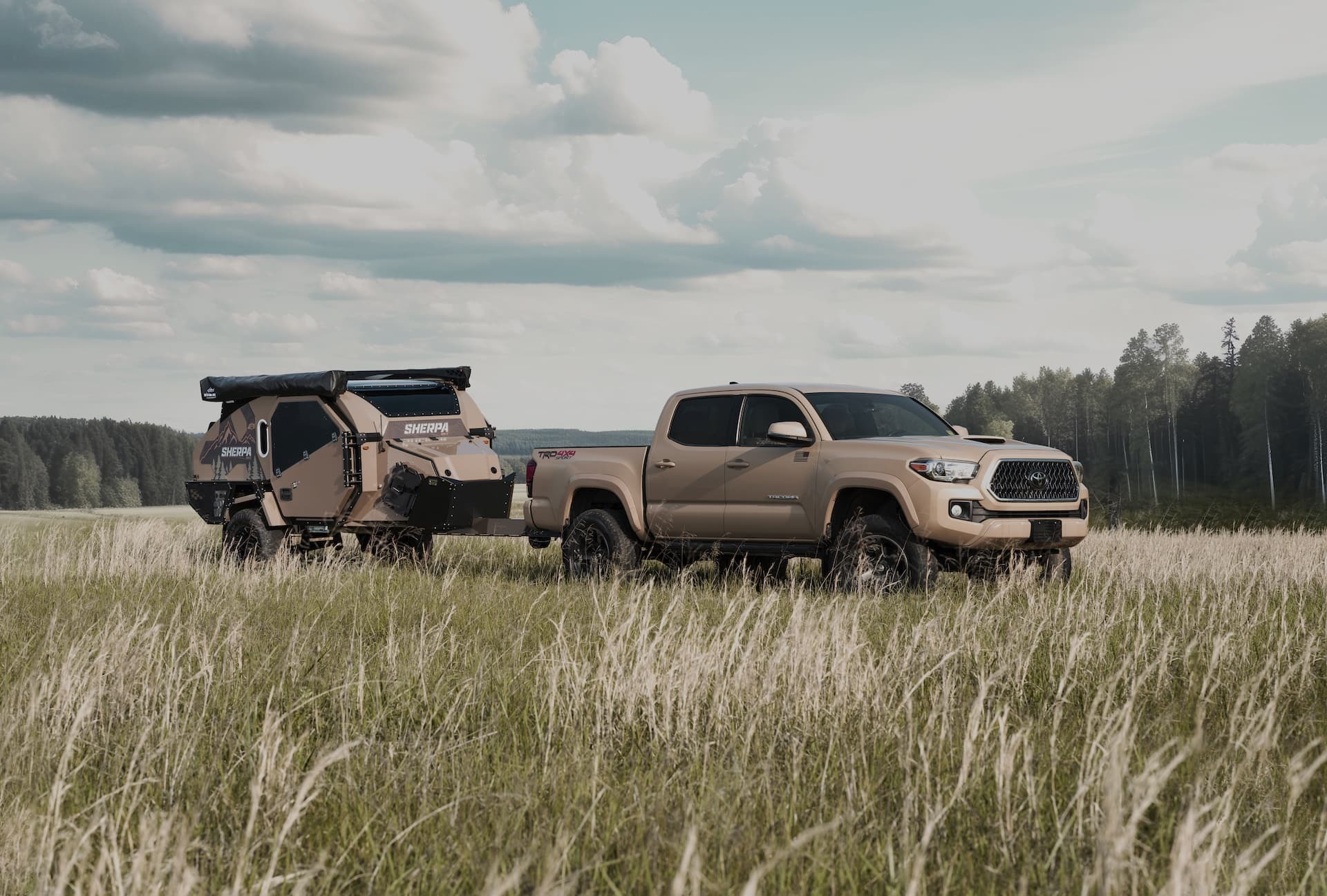

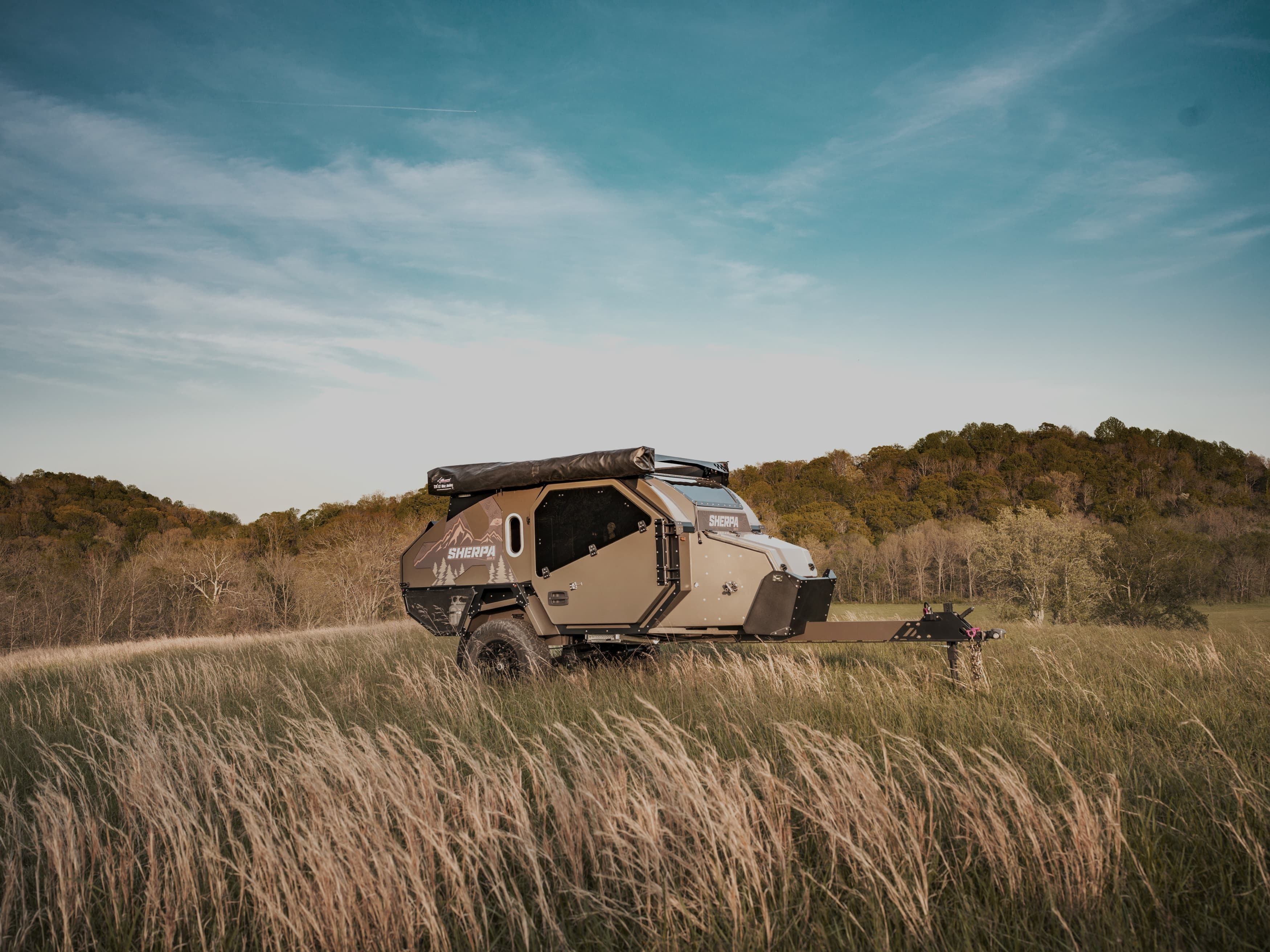

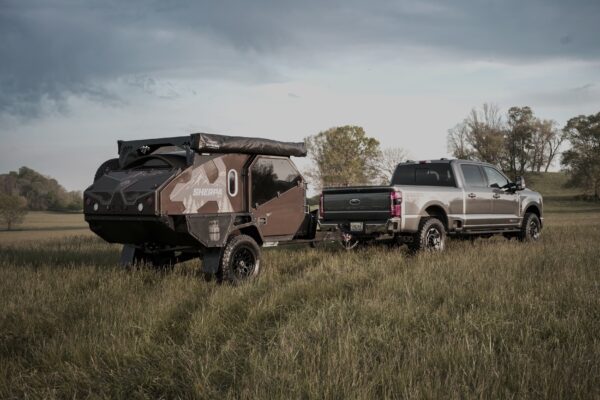

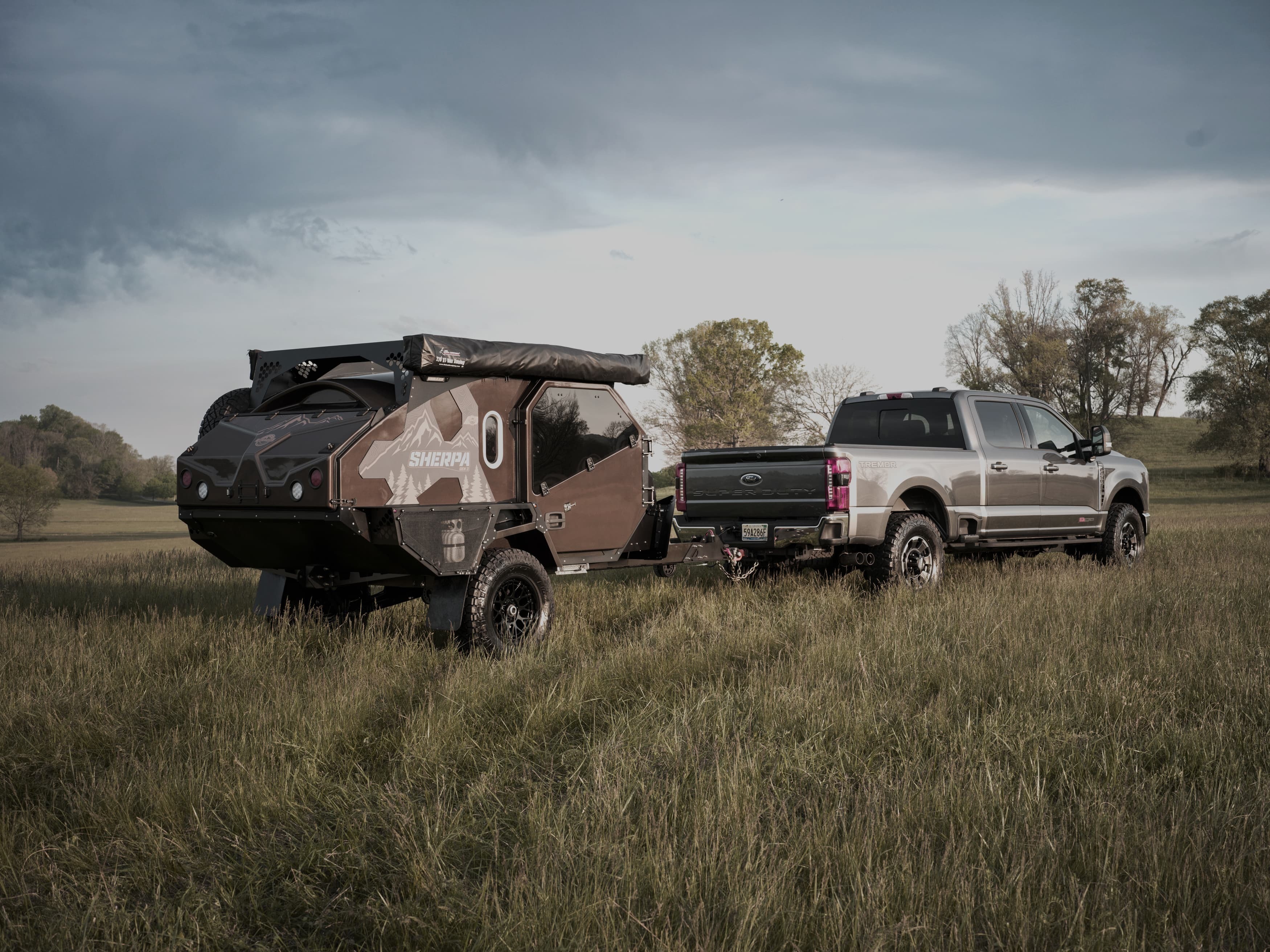

Meet the Sherpa Gen 3

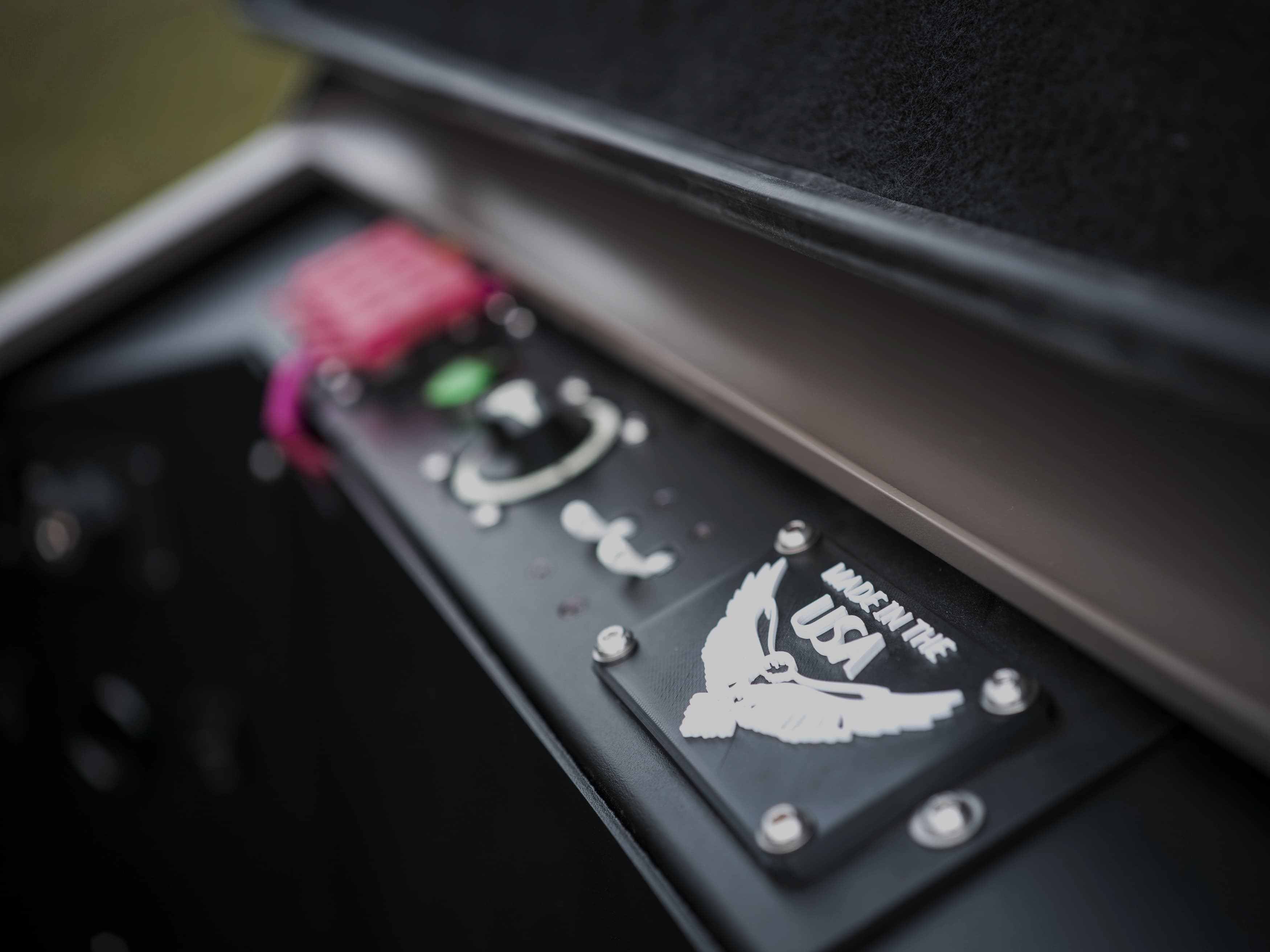

Australian designed, American made.
Explore what makes the Sherpa Gen 3 ready to chase whatever adventure awaits.
Terraform Suspension
Independent Terraform Suspension with automatic ride height control.
durable build
Durable aluminum construction designed for real off-road use.
Garmin Control System
Integrated lithium power system with Garmin digital switching.
Full-Featured Kitchen
Full-featured outdoor kitchen and food storage.
Water System
Onboard water, heating, and shower systems for all-season travel.
Sleeping Quarters
Comfortable sleeping quarters with integrated storage.
Off-Grid
Ready
Power, water, and systems designed for extended off-grid travel.

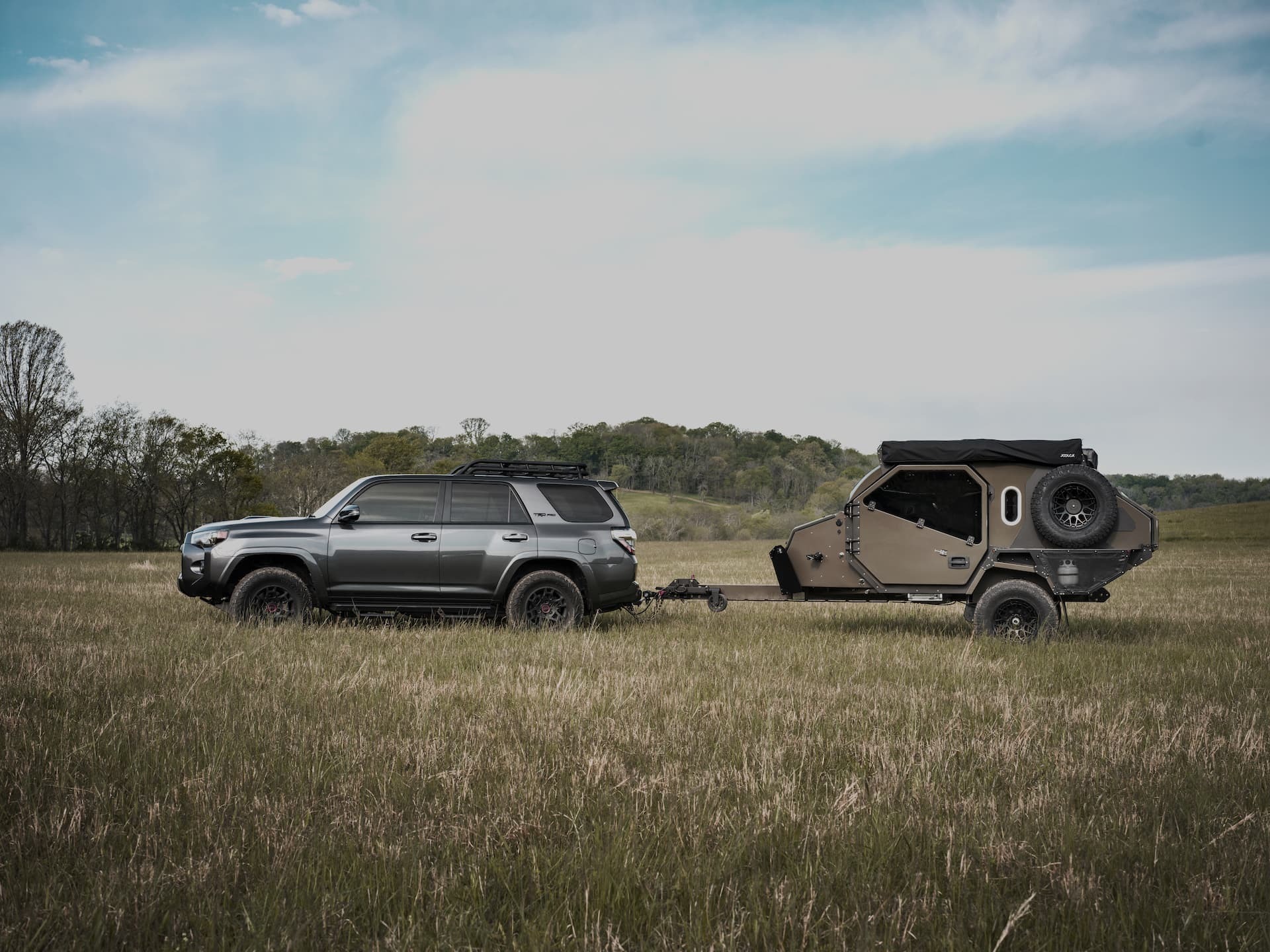

Terrain
Confidence
Terraform Suspension engineered for rugged terrain and stability.
Built Strong &
Durable
Unibody aluminum construction designed for long-term use.
Full-Featured
Kitchen
Functional outdoor cooking without unnecessary complexity.
Comfortable
Living Quarters
Insulated, well-designed sleeping space for real recovery.
Simplified
Ownership
Intuitive systems that reduce maintenance and learning curves.
Chassis, Suspension & Towing
-
150x100x6 mm fully integrated aluminum chassis beam
-

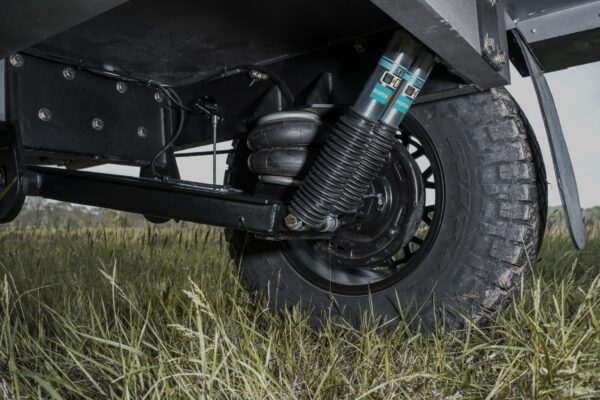

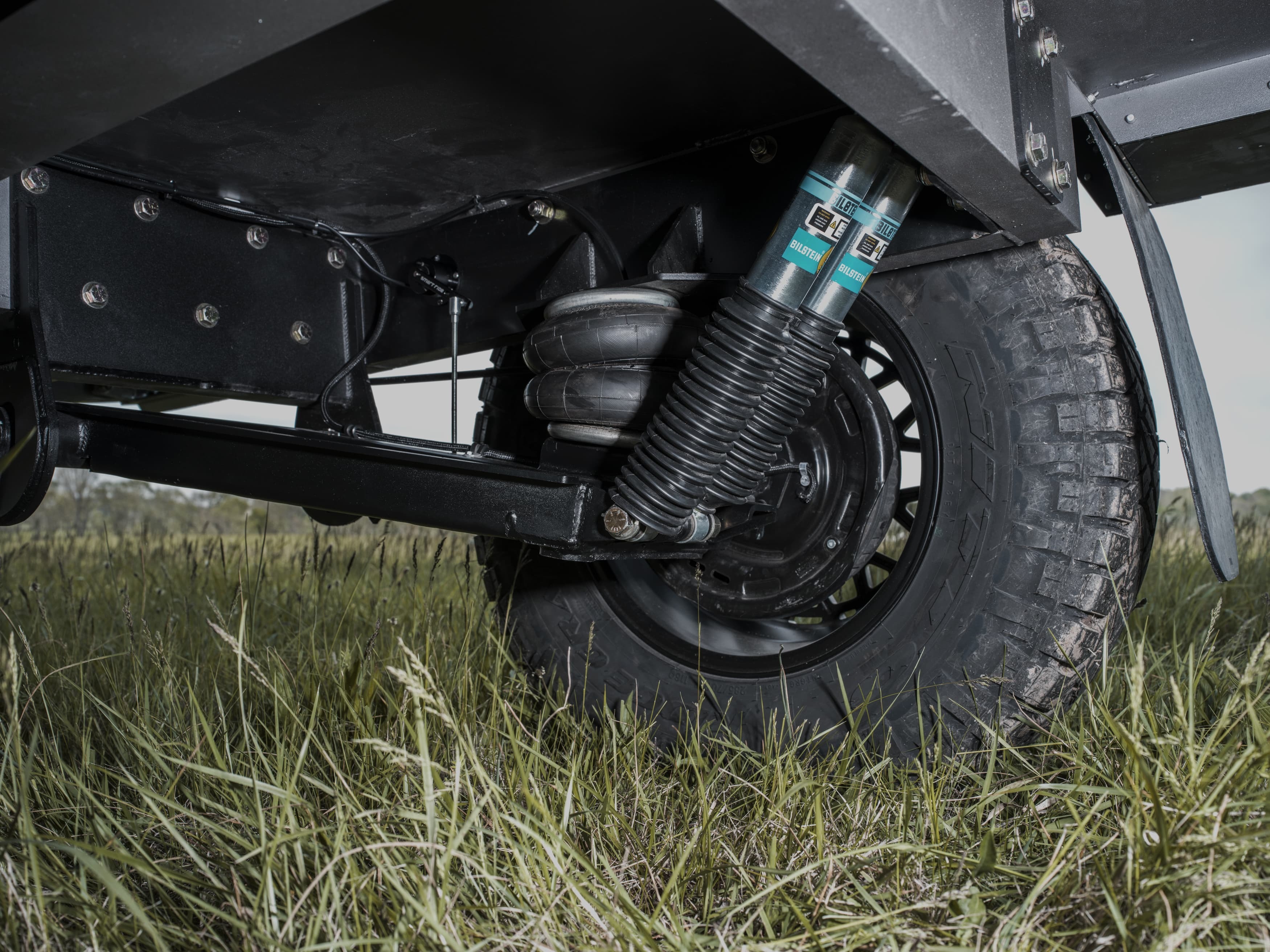

2T GTM-rated BRS off-road suspension with Firestone airbags and Bilstein shocks
-
SmartRide ride height sensors
-
12" Dexter electric drum brakes with greaseable bearings
-

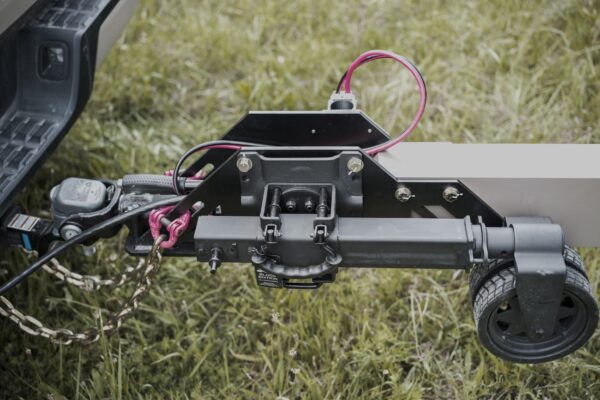

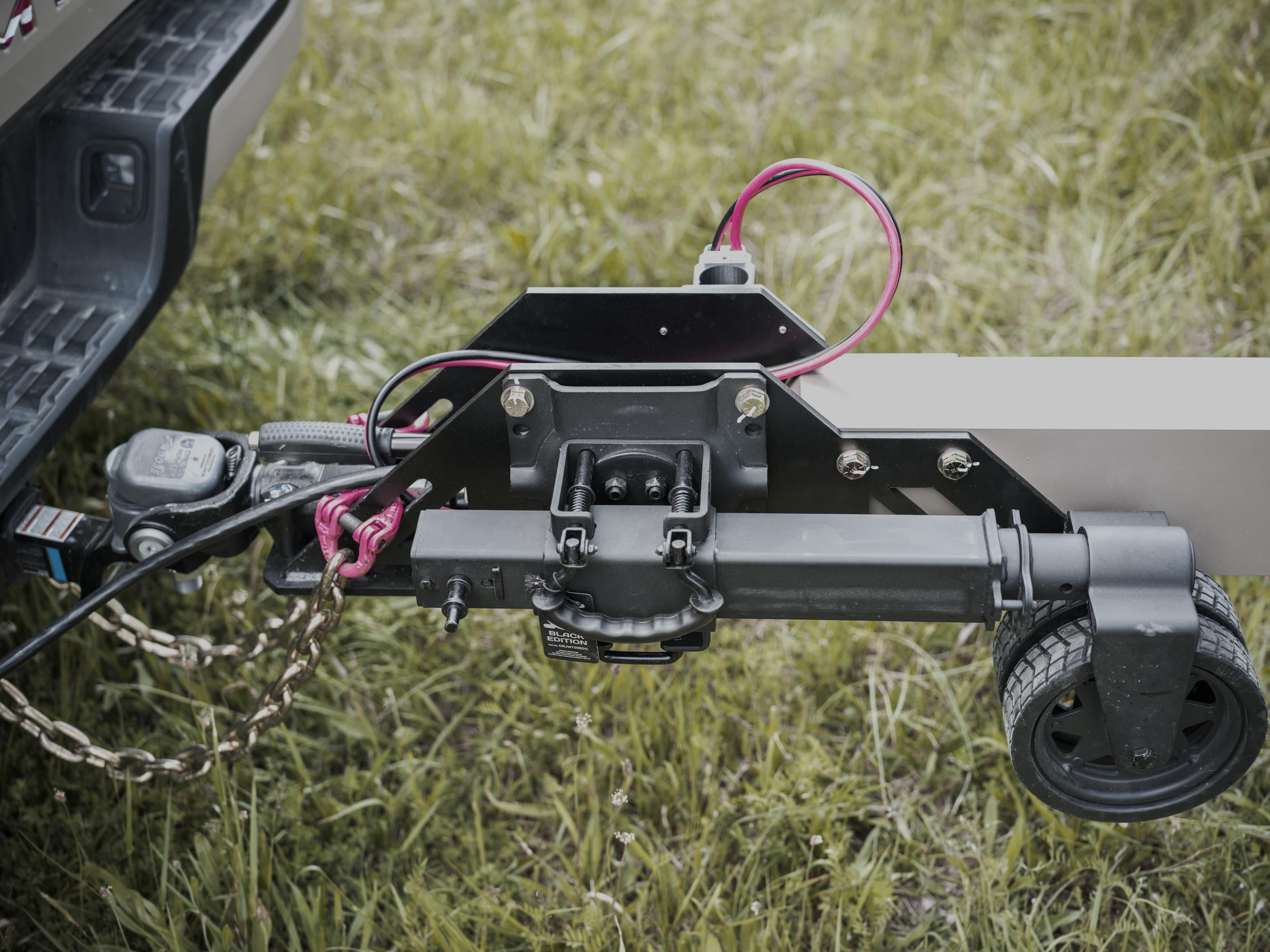

DO35 Cruisemaster coupler with integrated park brake
-
Jockey Wheel Ark750
-
2x pull-out ladders

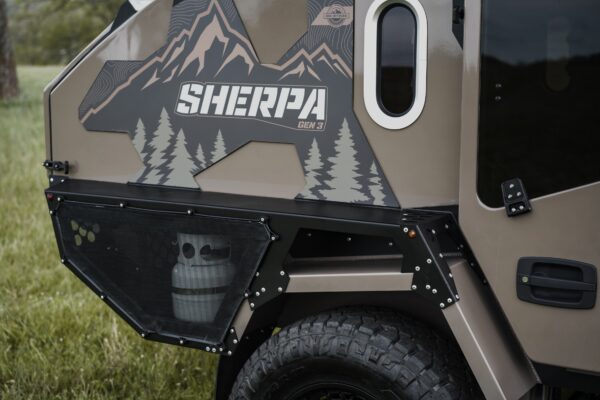

Body Construction & Exterior Protection
-
1-piece fiberglass cone, 20 mm thick with honeycomb core
-
Insulated hood-lined fiberglass front and rear hatch lids
-
Powder-coated marine-grade aluminum body and components
-
Integrated aluminum stone deflector
-
Marine-grade hood lining on ceiling and walls
Wheels, Tires & Recovery
-
3x Nitto Ridge Grappler 285/75 R17 on KMC alloy wheels
-

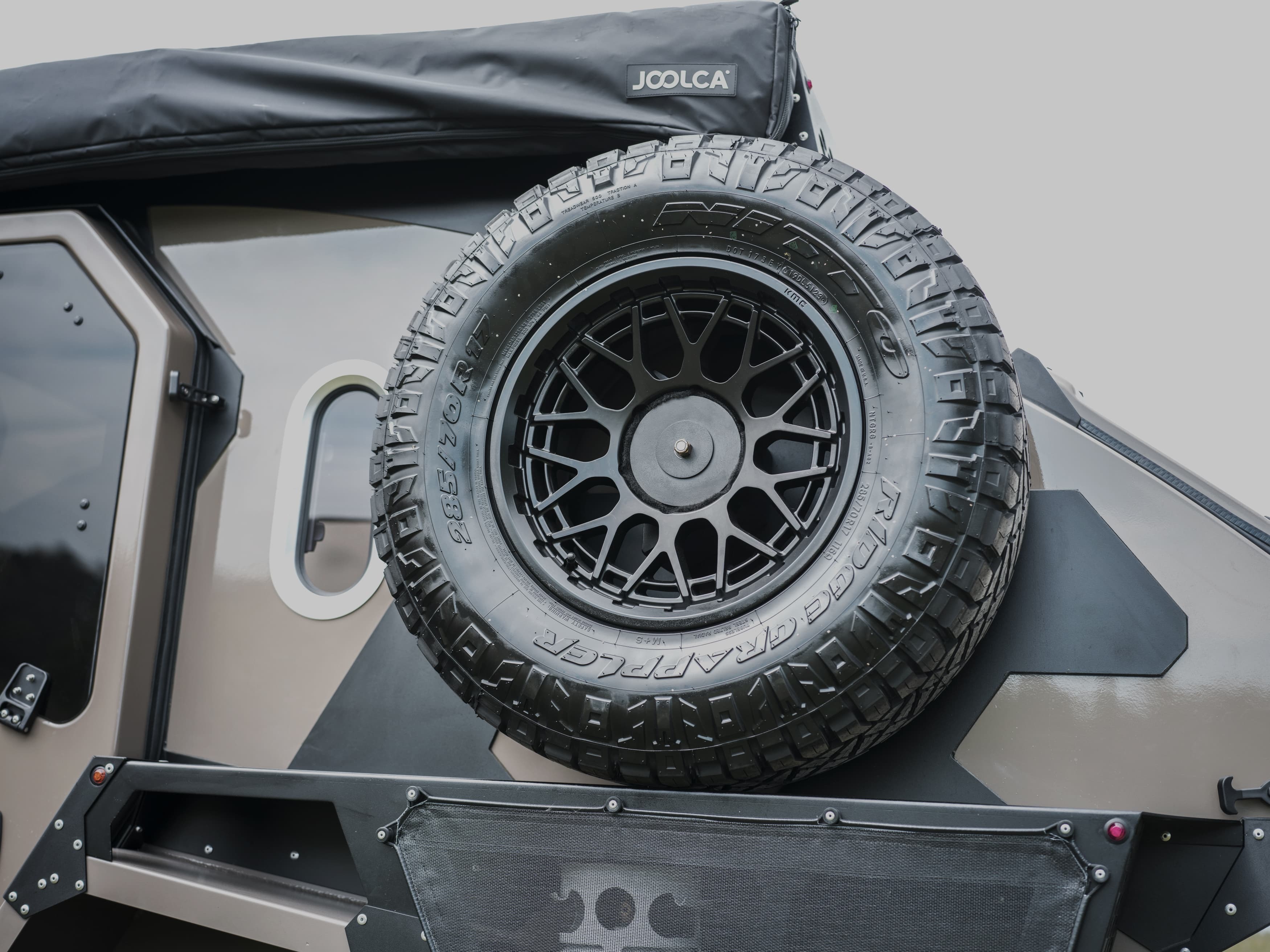

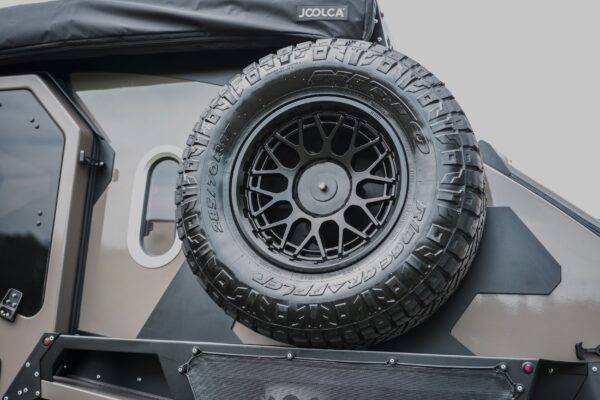

Side-mounted spare wheel (fits up to 35")
-

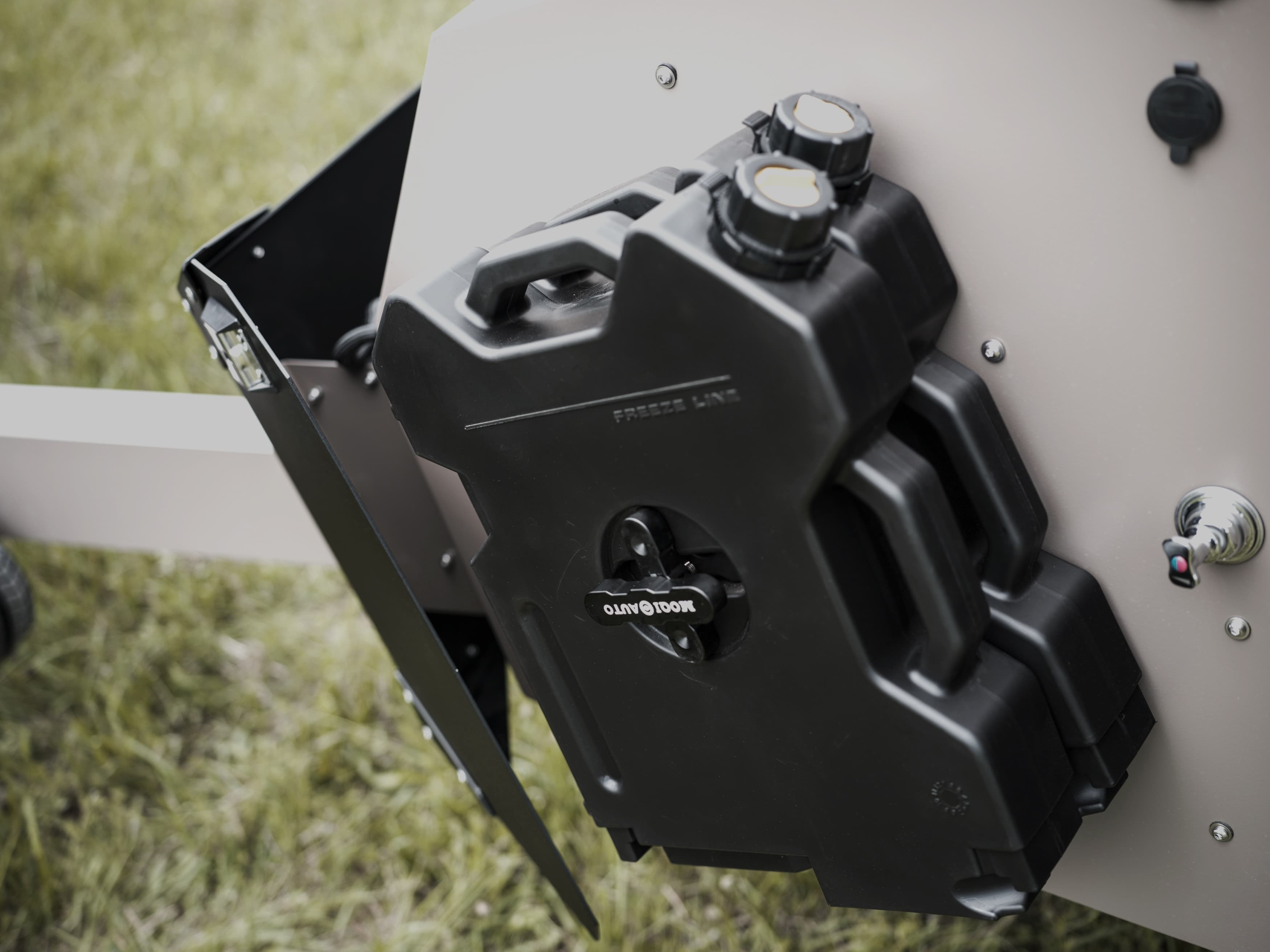

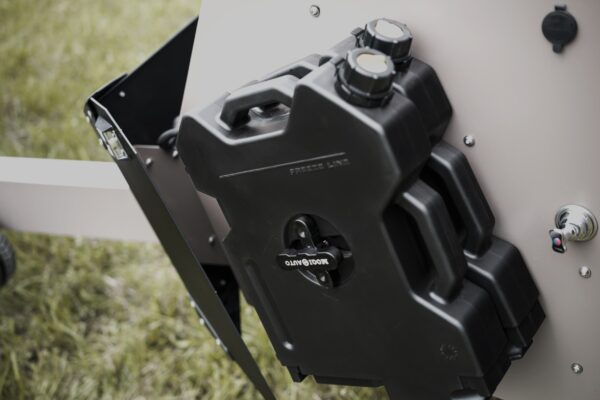

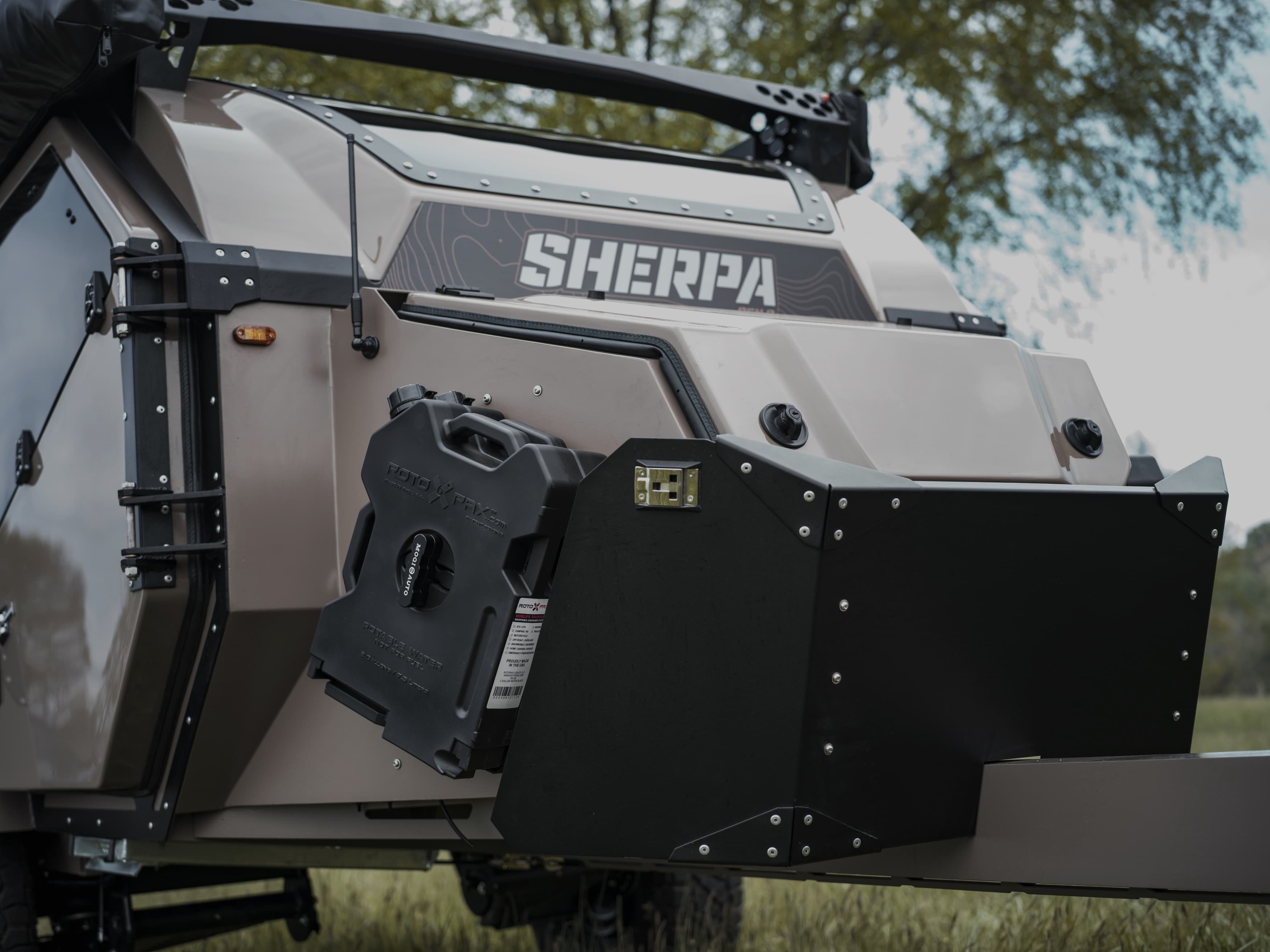

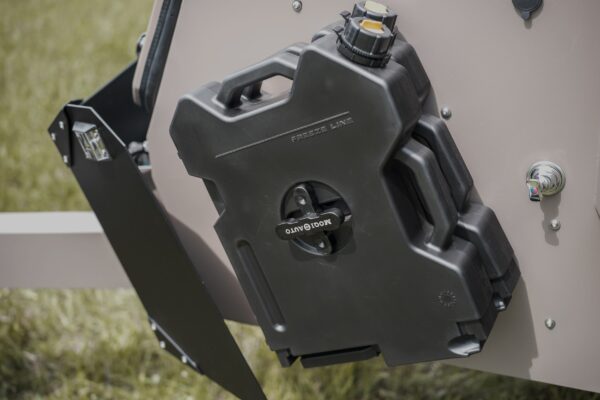

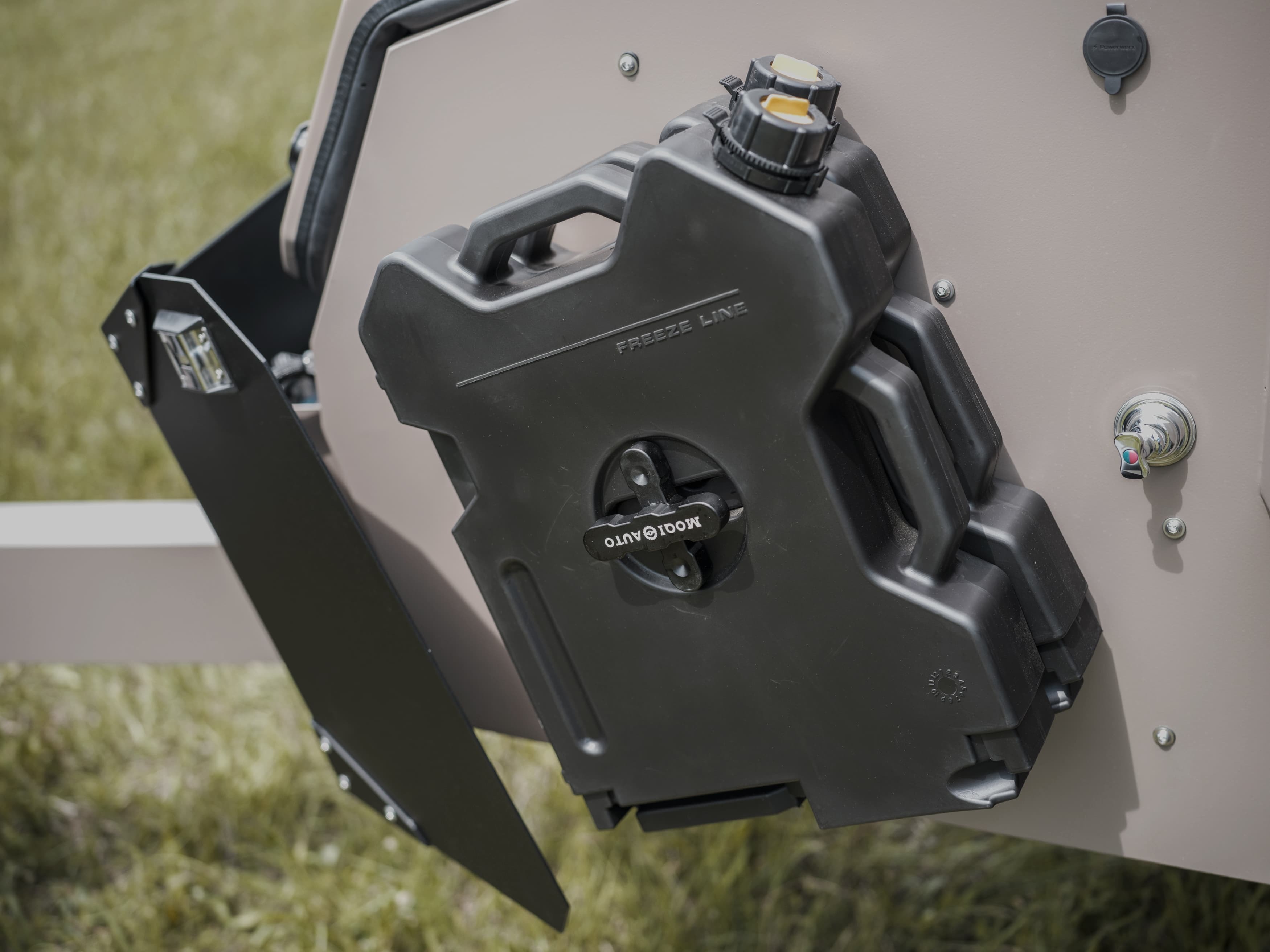

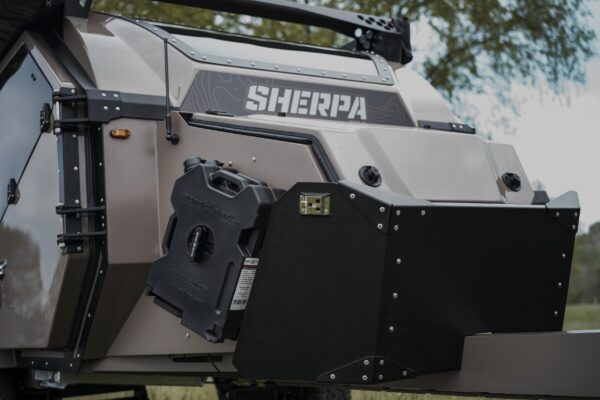

2x ROTOPAX holders
Doors, Windows & Ventilation
-
Remote-access fiberglass doors with acrylic windows, midge screens, and blinds
-
2x aluminum operable port windows
-
2x Sirocco 12V fans

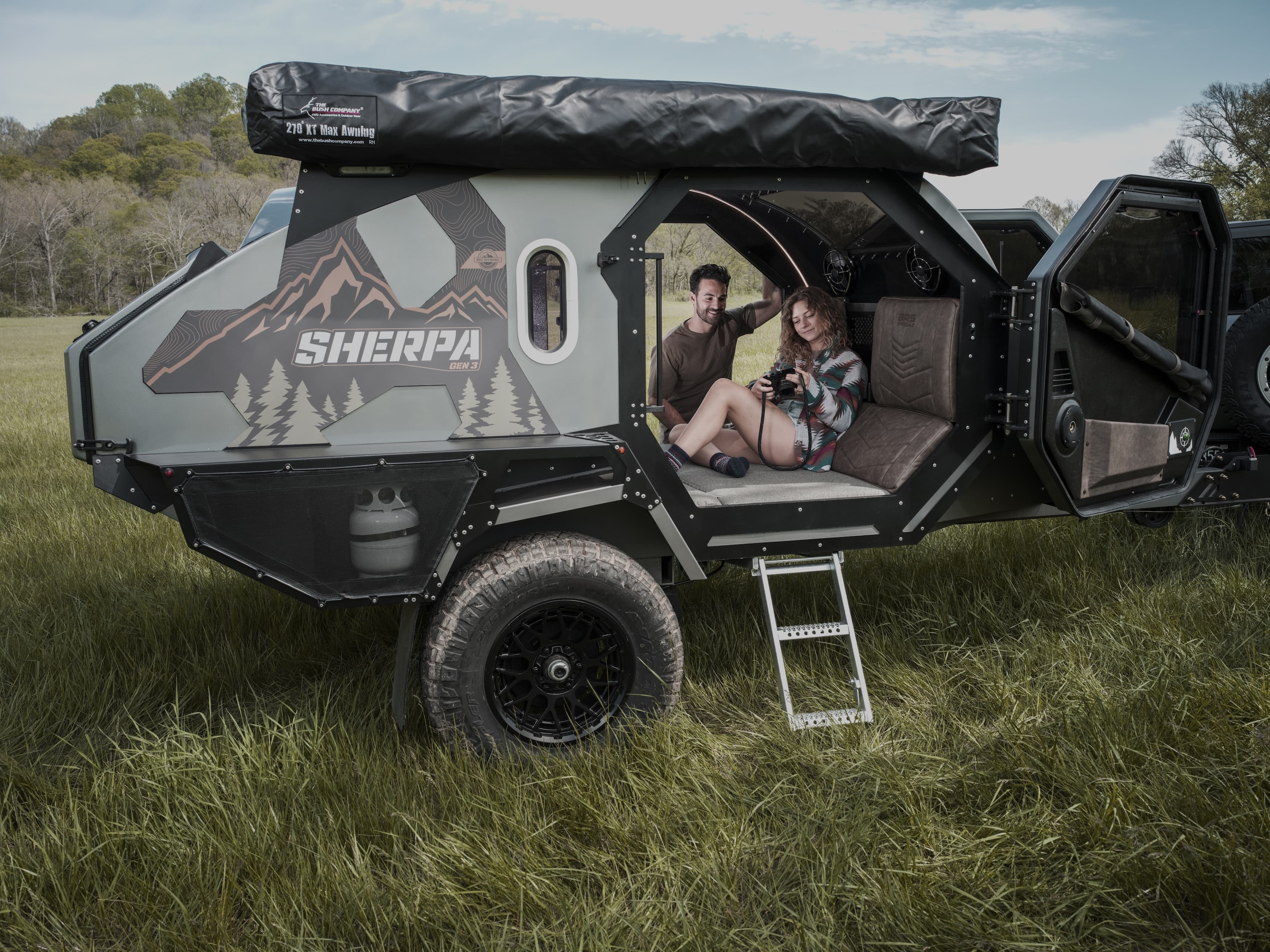

Interior, Sleeping & Storage
-
150 mm (6") foam queen mattress
-
Automotive leather backrests with 50 mm (2") foam
-

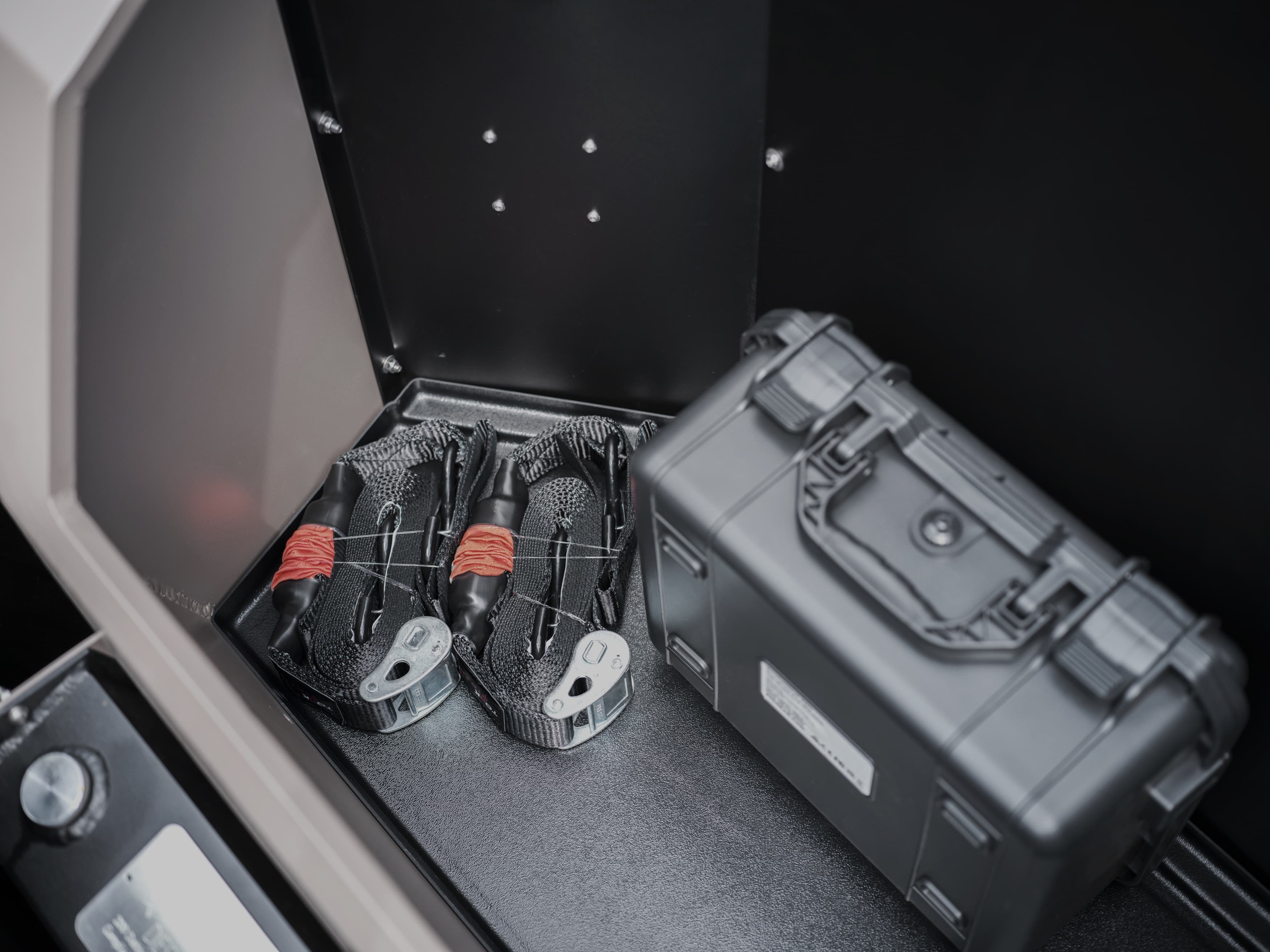

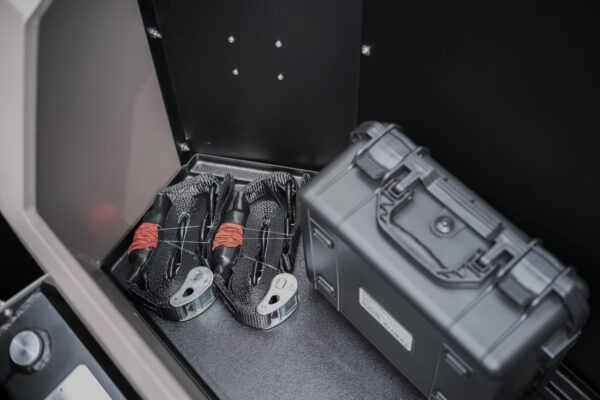

Internal cupboard storage
-
5x pocket storage holes
-
ABS molded sink, storage nooks, and internal door panels

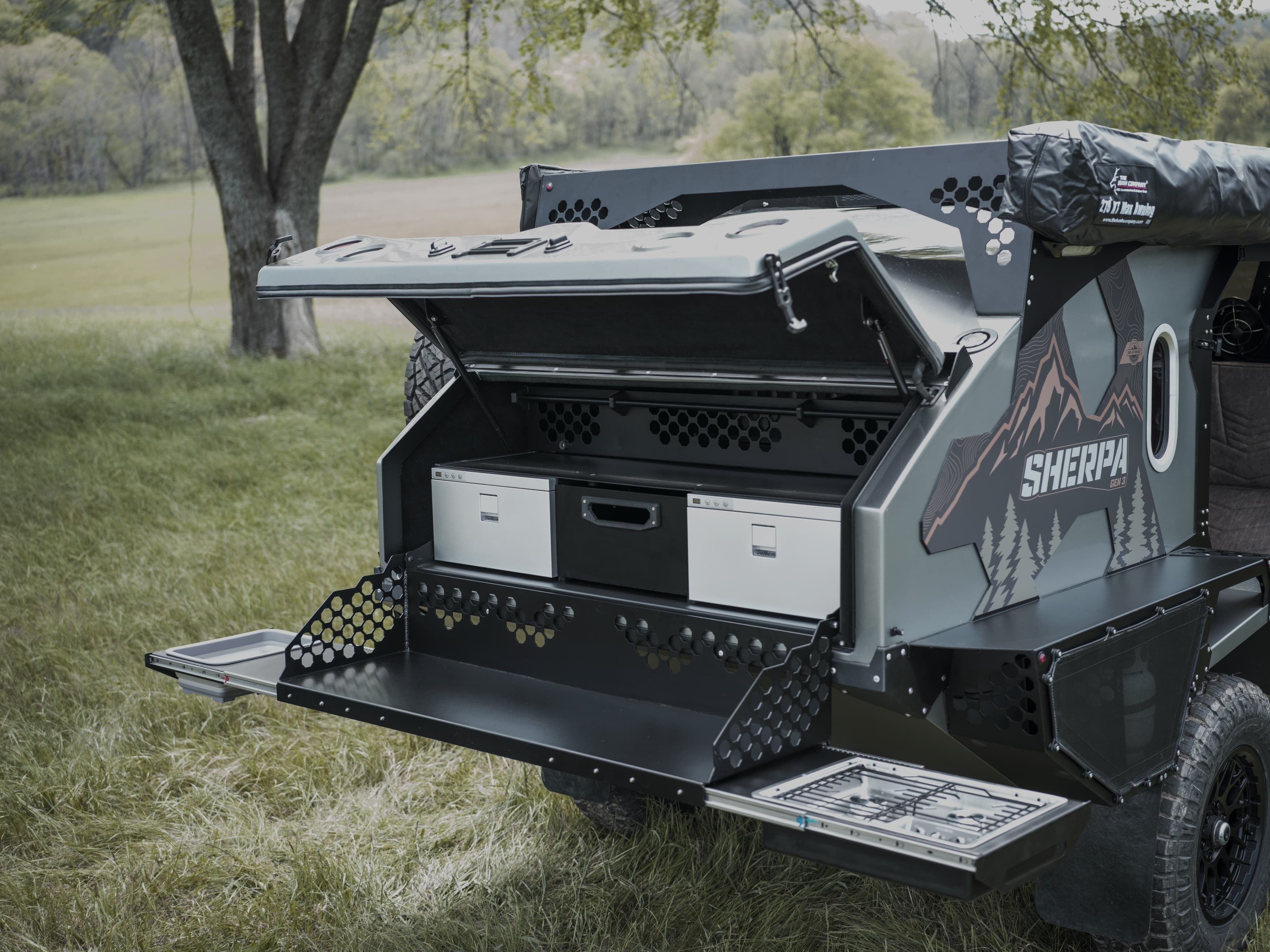

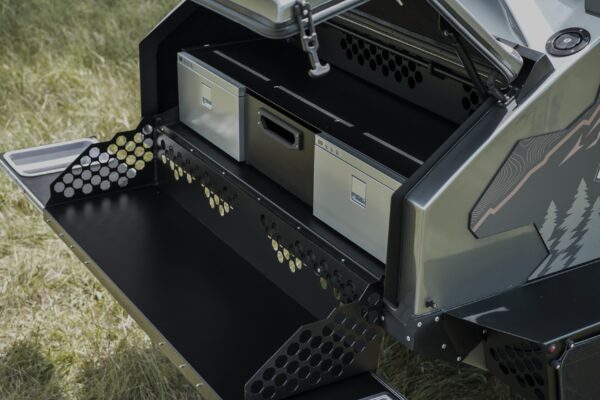

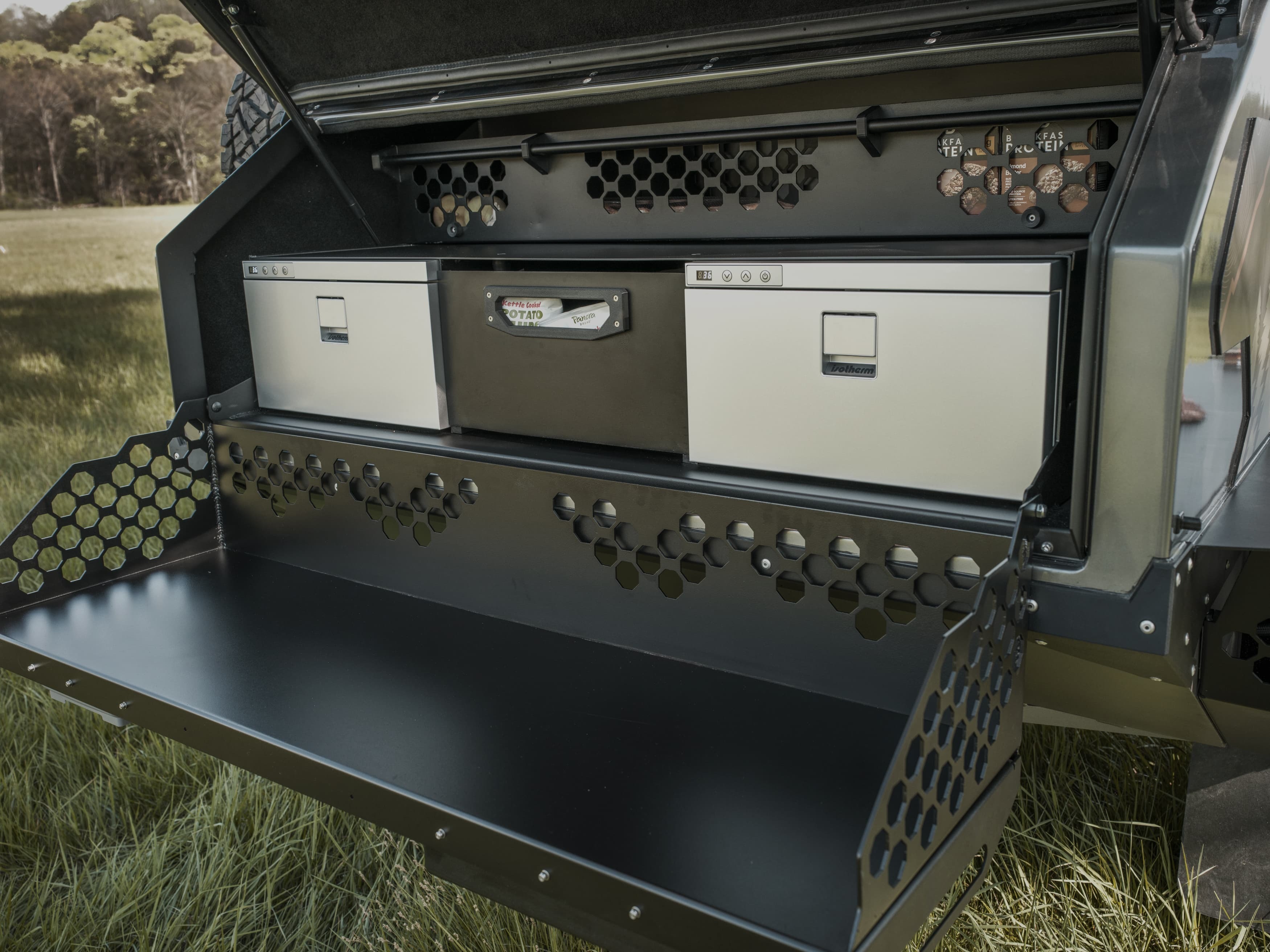

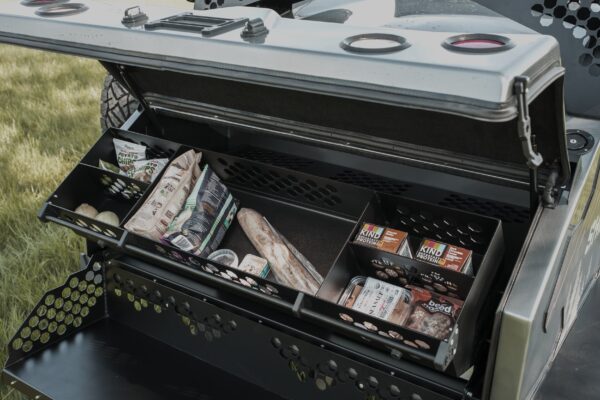

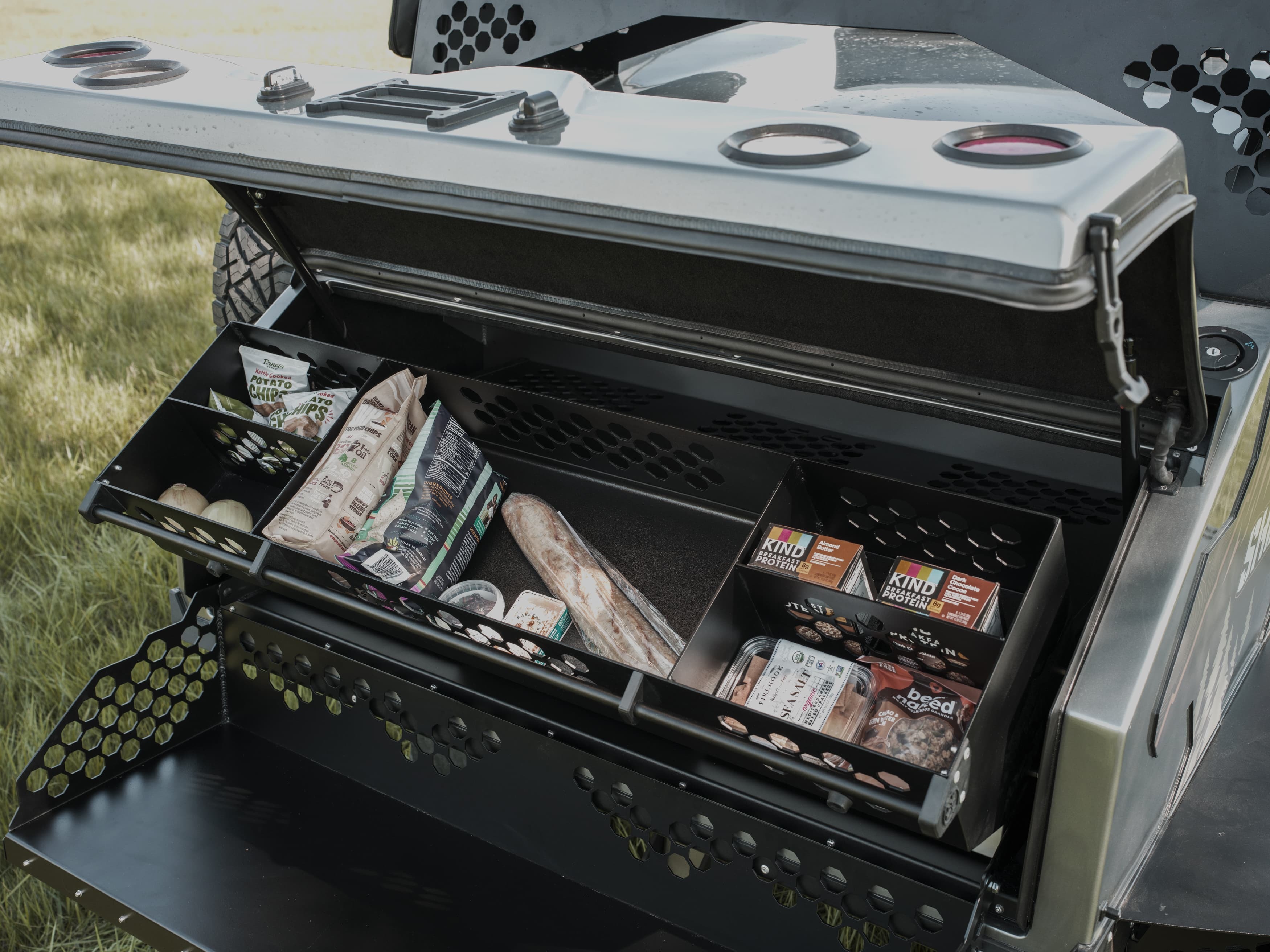

Kitchen & Food Storage
-

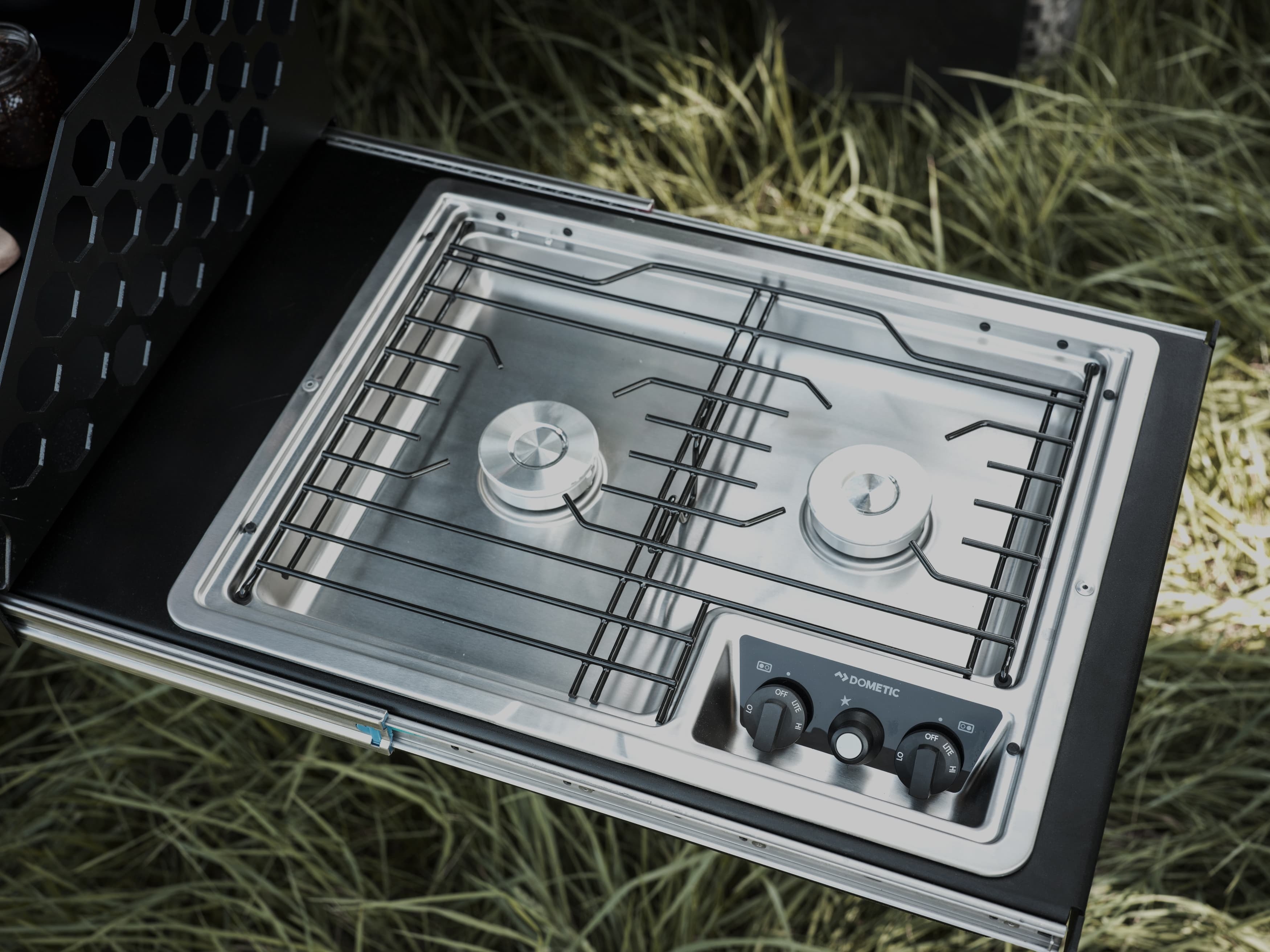

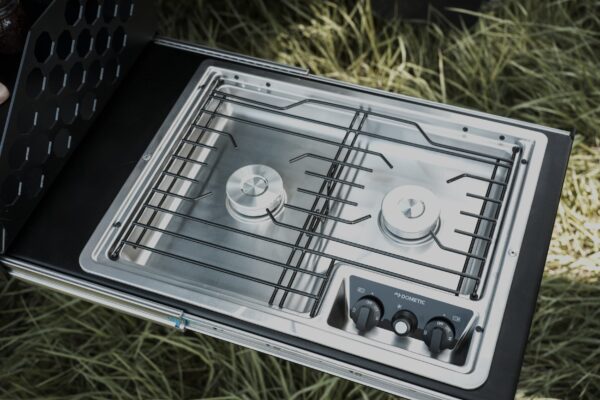

Dometic flush-mount dual-burner gas cooker
-
2x Isotherm 30 L (7.5 US gal) drawer fridge/freezer units
-
Hot and cold mixer taps at kitchen (flexi hose)
Water, Heating & Shower Systems
-
140 L (36 US gal) roto-molded poly water tank with sender
-
10 L (2.6 US gal) aluminum diesel tank with sender
-

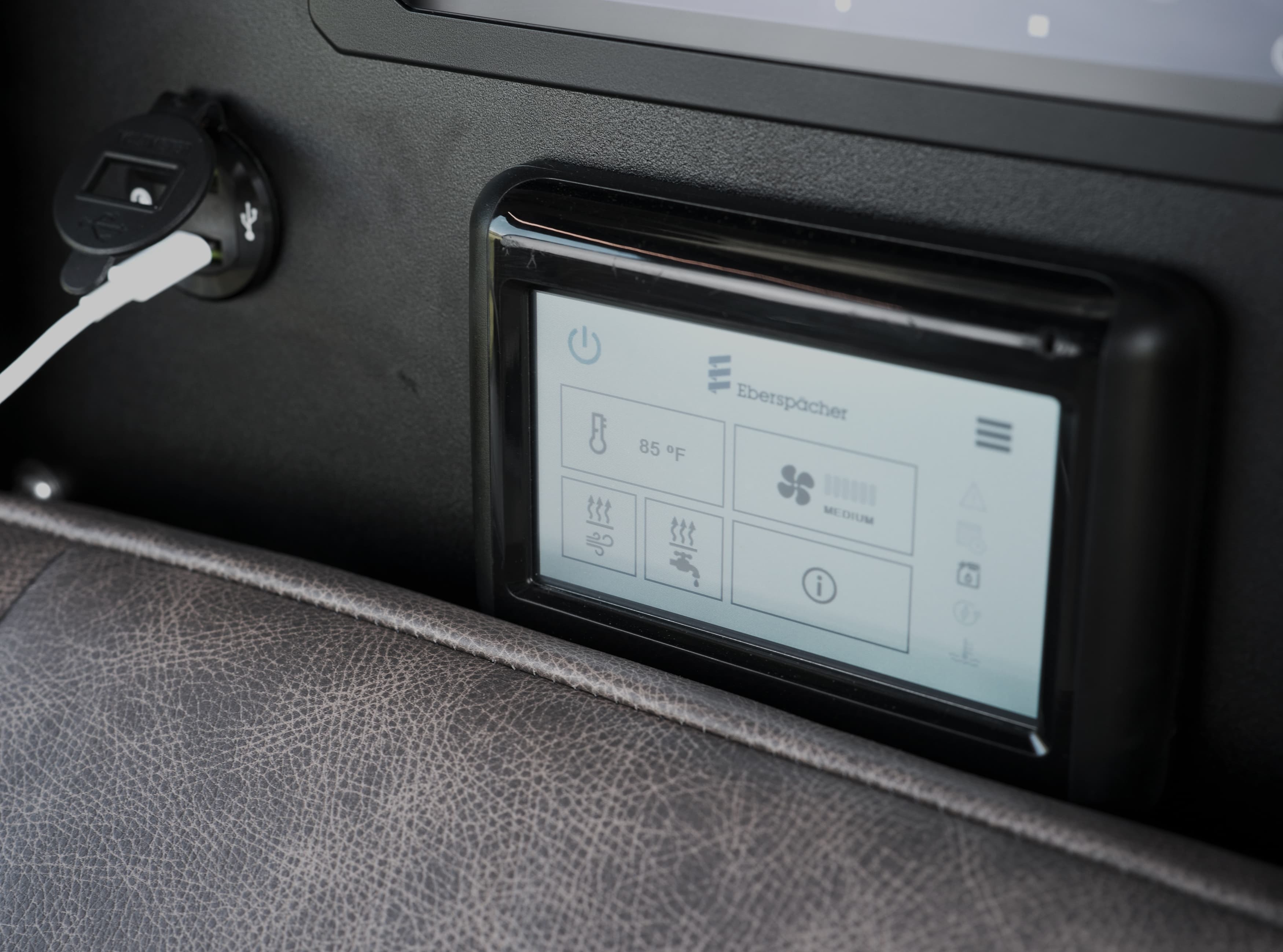

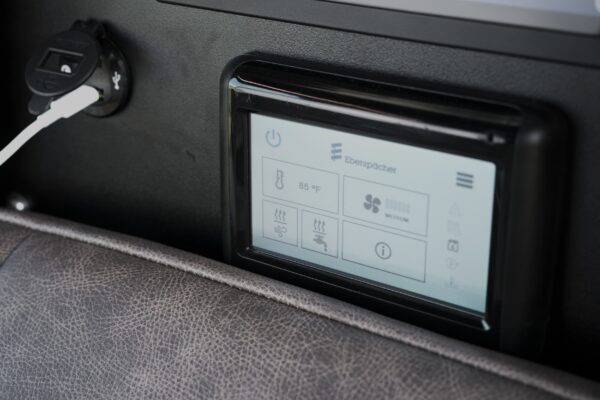

Eberspacher diesel hot water and space heater combi
-
6L (1.6 US gal) glycol storage with chassis heating (anti-freeze)
-

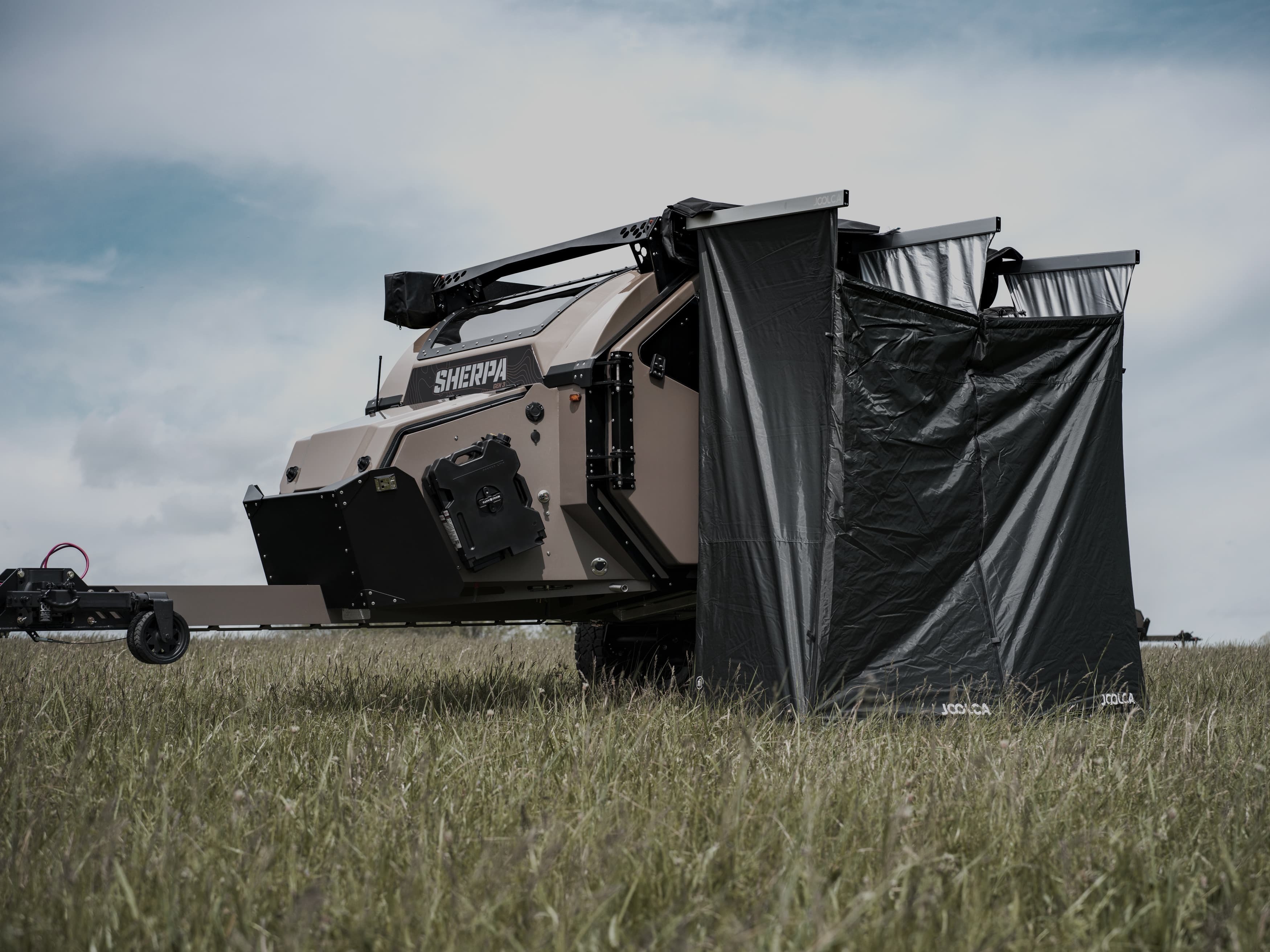

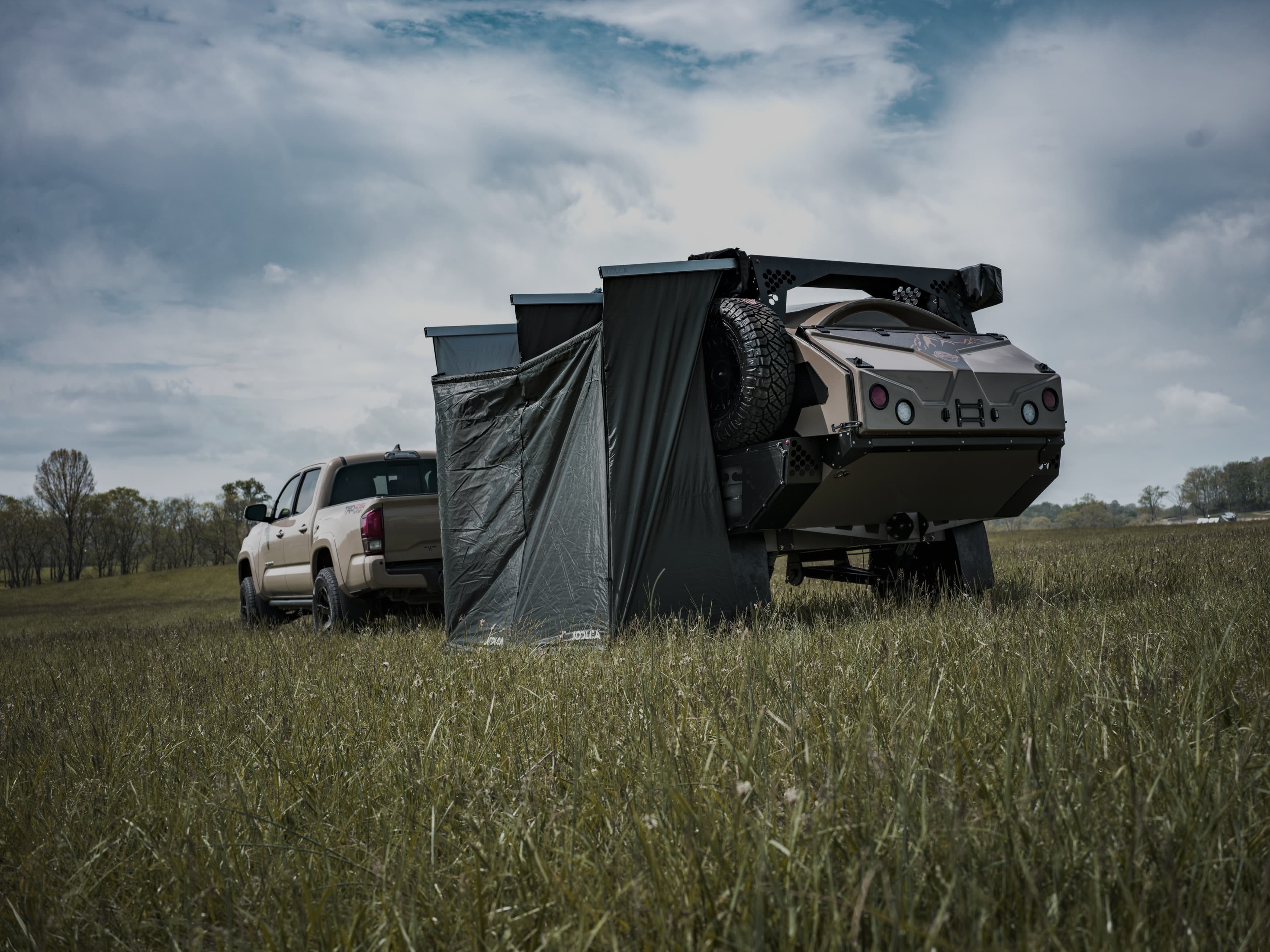

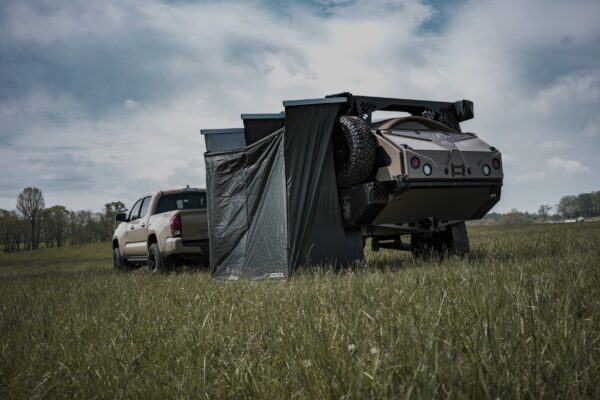

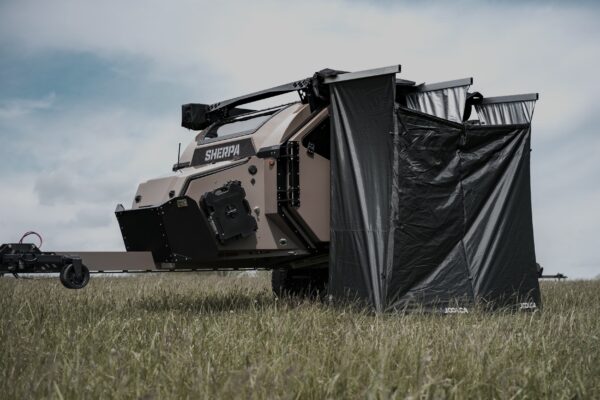

Joolca double shower cube
-
Hot and cold mixer taps at shower (flexi hose)
Power, Electrical & Control Systems
-
Battleborn 270Ah lithium battery (optional additional)
-
Enerdrive (Kisae) 40A DC-DC and AC chargers
-
Garmin digital switching (Connect50)
-
7" Garmin touchscreen
-
Proprietary digital mapping and control system
Lighting & Electrical Outlets
-
300 mm (12") amber and white kitchen light
-
300 mm (12") external awning lights (amber and white)
-
2x dimmable internal strip lights
-
2x dual USB charging ports (2.4 A) and 12 V outlets
Audio, Entertainment & Connectivity
-
Fusion Hideaway Marine audio system
-

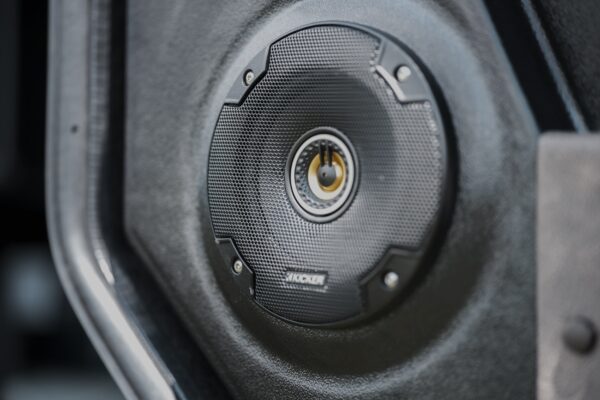

4x 5.5" Kicker interior speakers
-
23.6" HD Smart TV with omnidirectional antenna
-
Radio antenna
Air, Gas & Utility
-
ARB compressor and tank with coupler outlet
-

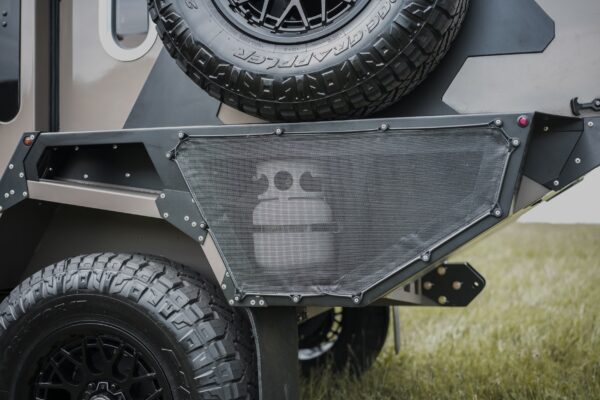

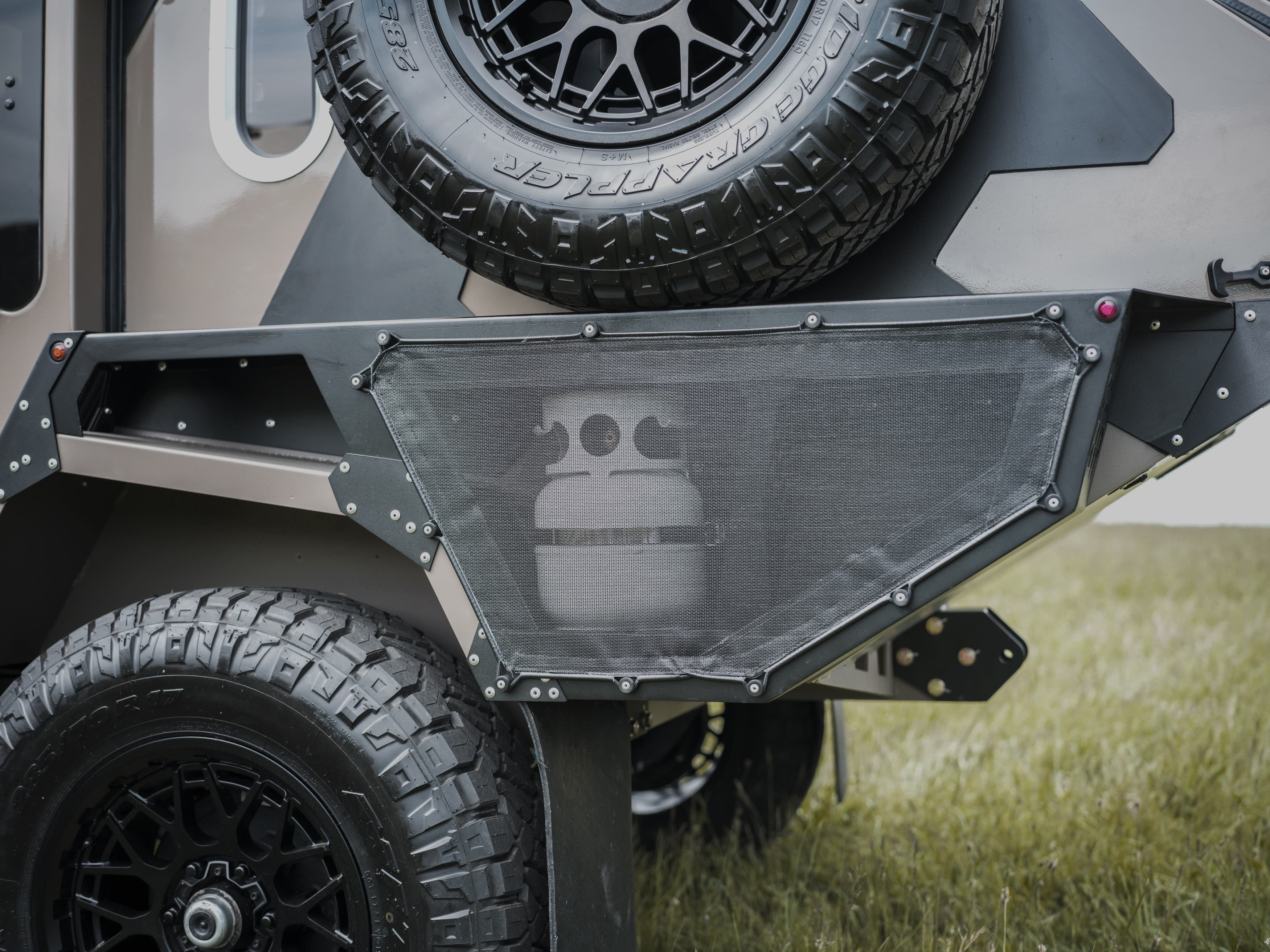

2x 4 kg (8.8 lb) gas bottles
Built for any condition
Designed to perform where roads end and conditions change without warning.
Built for all seasons
Engineered for year-round travel across heat, cold, and changing climates.
Built for comfort
Thoughtfully designed to support rest, recovery, and livability on the trail.
gallery
Frequently asked questions
Technical Specifications
Dimensions & Weight
-
Overall length: 5450 mm (17' 11")
-
Body length: 3700 mm (12' 2")
-
Overall width: 2060 mm (81")
-
Ride height: 2180 mm (86")
-
Storage height (airbags deflated): 2100 mm (83")
-
Tare weight: 920-1150 kg (2,028-2,535 lb) depending on configuration
-
Tare Ball weight: 140–165 kg (309–364 lb)
-
Gross Vehicle Weight Rating (GVWR): 1995 kg (4,400 lb)
Chassis, Suspension & Construction
-
Fully integrated aluminum chassis beam (150×100×6 mm)
-
Independent Terraform air suspension system
-
Bilstein shocks with Firestone airbags
-
SmartRide ride height sensors
-
Marine-grade aluminum body and components
-
Composite fiberglass front cone with honeycomb core
-
Insulated fiberglass front and rear hatch lids
Towing, Brakes & Recovery
-
DO35 Cruisemaster coupler with integrated park brake
-
12" Dexter electric drum brakes with greaseable bearings
-
Ark750 jockey wheel
-
Two pull-out recovery ladders
-
Integrated aluminum stone deflector
Wheels & Tires
-
Three Nitto Ridge Grappler 285/75 R17 tires
-
KMC alloy wheels
-
Side-mounted spare wheel (fits up to 35")
Water, Heating & Shower Systems
-
140 L (36 US gal) roto-molded poly water tank with sender
-
10 L (2.6 US gal) aluminum diesel tank with sender
-
Diesel hot water and space heater combination system
-
Glycol storage with chassis heating for freeze protection
-
Hot and cold mixer taps at kitchen and shower
-
Joolca double shower cube
Power, Electrical & Control Systems
-
Integrated lithium battery system (270Ah standard, expandable)
-
DC-DC and AC charging system
-
Garmin digital switching with touchscreen interface
-
Proprietary digital mapping and control system
-
Remote system monitoring and control via mobile app
-
Multiple 12V outlets and USB charging points
Kitchen & Utility
-
Flush-mount dual-burner gas cooktop
-
Dual drawer fridge/freezer units. Total 60 L (15 US gal)
-
Dedicated prep space and integrated storage
-
External utility lighting for night use
Interior, Sleeping & Comfort
-
Queen-sized mattress with 150mm (6") foam
-
Automotive leather backrests
-
Integrated cupboard and pocket storage
-
Marine-grade hood lining on walls and ceiling
-
Two operable port windows
-
Dual 12V circulation fans
Lighting, Audio & Entertainment
-
Internal dimmable strip lighting
-
External amber and white awning lights
-
Fusion Hideaway marine audio system
-
Four interior speakers
-
Built-in HD smart TV with omnidirectional antenna
Air, Gas & Utilities
-
ARB onboard air compressor with tank and coupler outlet
-
Two 4 kg (8.8 lb) gas bottles
Notes
-
Specifications are approximate and may vary by configuration and region
-
Some features may be optional depending on build or dealer
-
All specifications are subject to change without notice

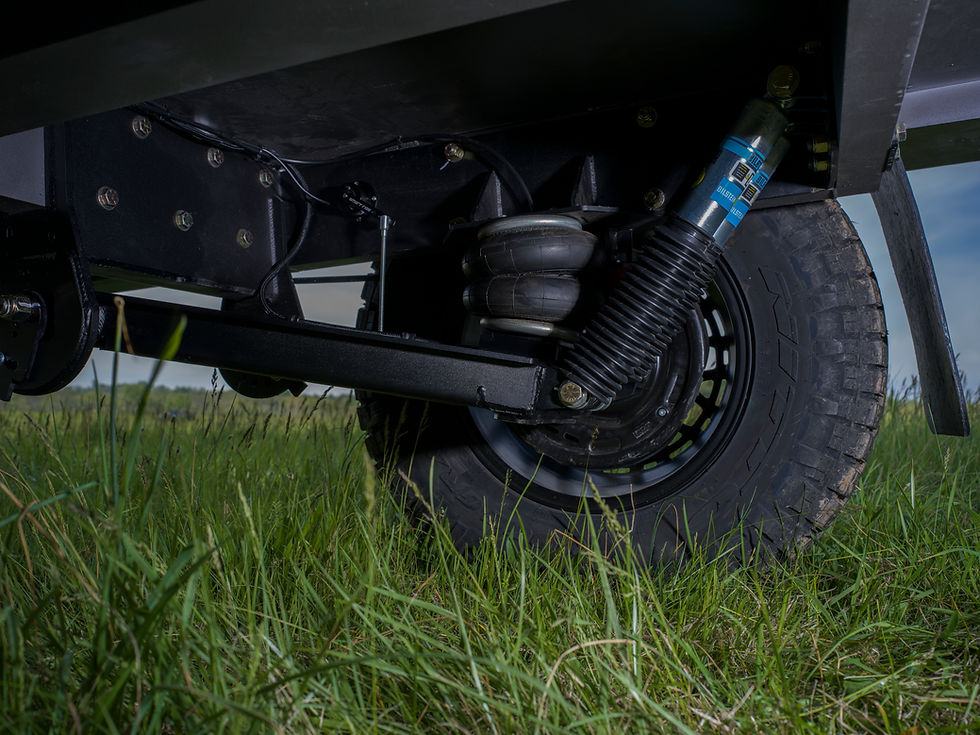

Terraform Suspension
Built exclusively for the Sherpa, the proprietary Terraform Suspension integrates automatic ride height presets with premium components. The result is a smoother ride over rough terrain, improved ground clearance, and simplified setup at camp.
Integrated Aluminum Body & Chassis Construction
The Sherpa is built around an integrated aluminum body and chassis designed to function as a unified structure. This construction reduces flex, increases strength, and improves long-term durability across demanding off-road conditions.
Power & Electrical Systems
An integrated power and electrical system supports lighting, refrigeration, and onboard electronics without reliance on external hookups. Designed for extended off-grid use, it simplifies energy management while keeping essential systems running reliably.
Climate & All-Season Capability
All-season climate systems provide interior heating, hot water, and freeze protection for critical components. This allows the Sherpa to be used comfortably and confidently across heat, cold, and changing weather conditions.

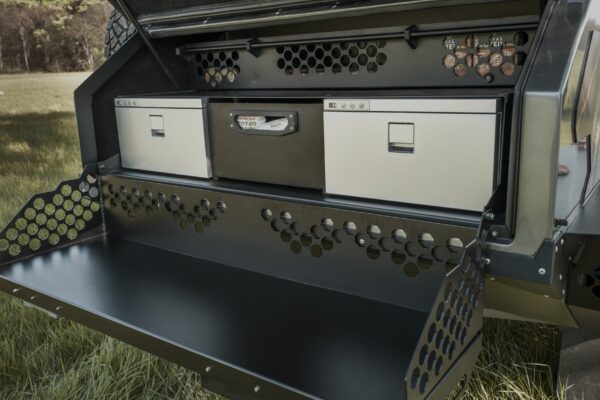

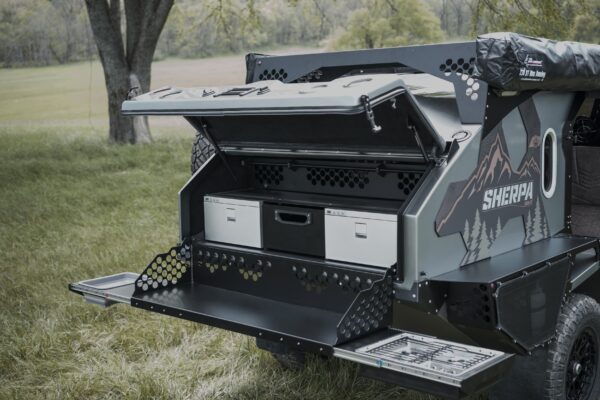

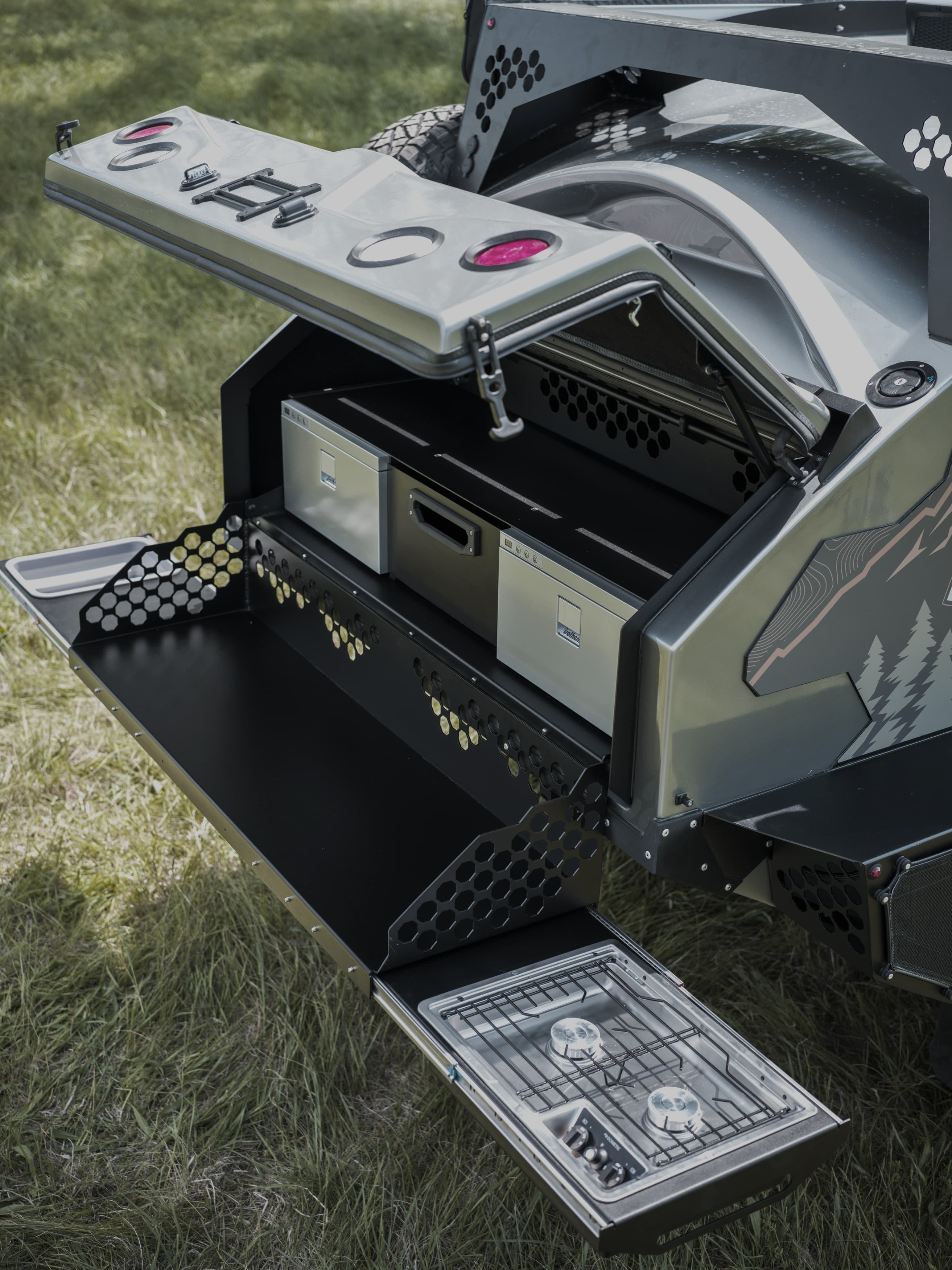

Kitchen & Utility Systems
The Sherpa features a full outdoor kitchen with dual drawer fridge/freezers, a gas cooktop, and dedicated prep space. Practical layout and integrated utilities support real cooking and daily camp life without unnecessary complexity.

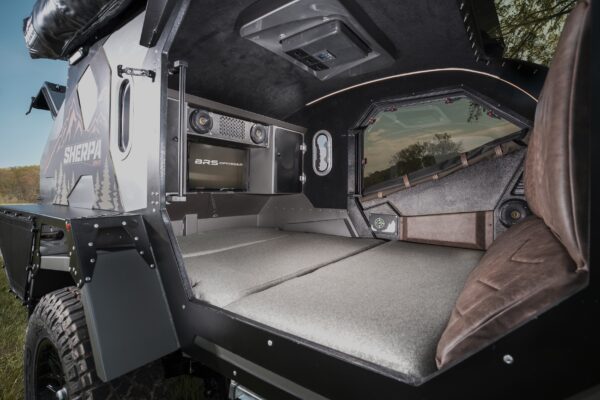

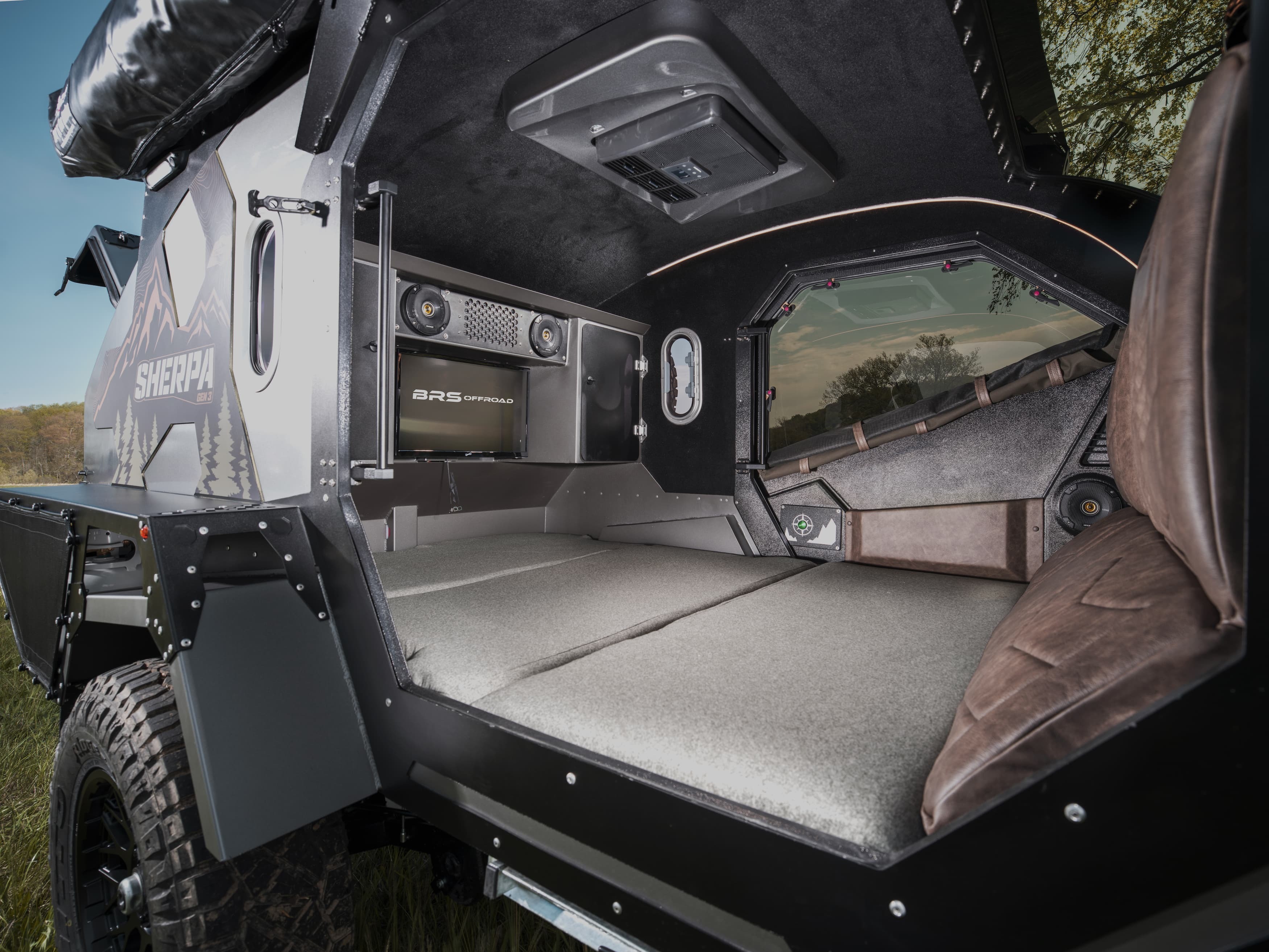

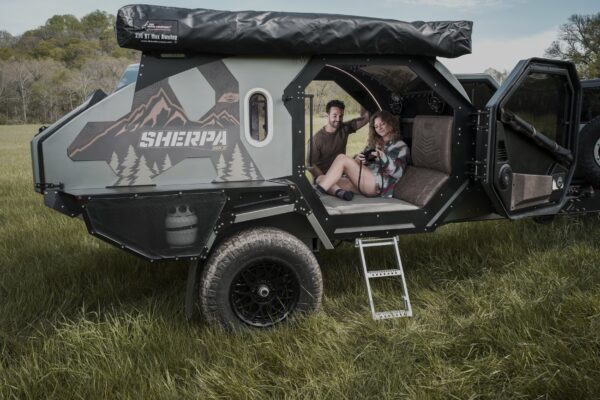

Interior & Sleeping Quarters
Inside, the Sherpa offers a queen-sized mattress, integrated storage, and a built-in smart TV for downtime at camp. Durable materials and thoughtful layout create a comfortable space to rest, recharge, and prepare for the next day’s drive.

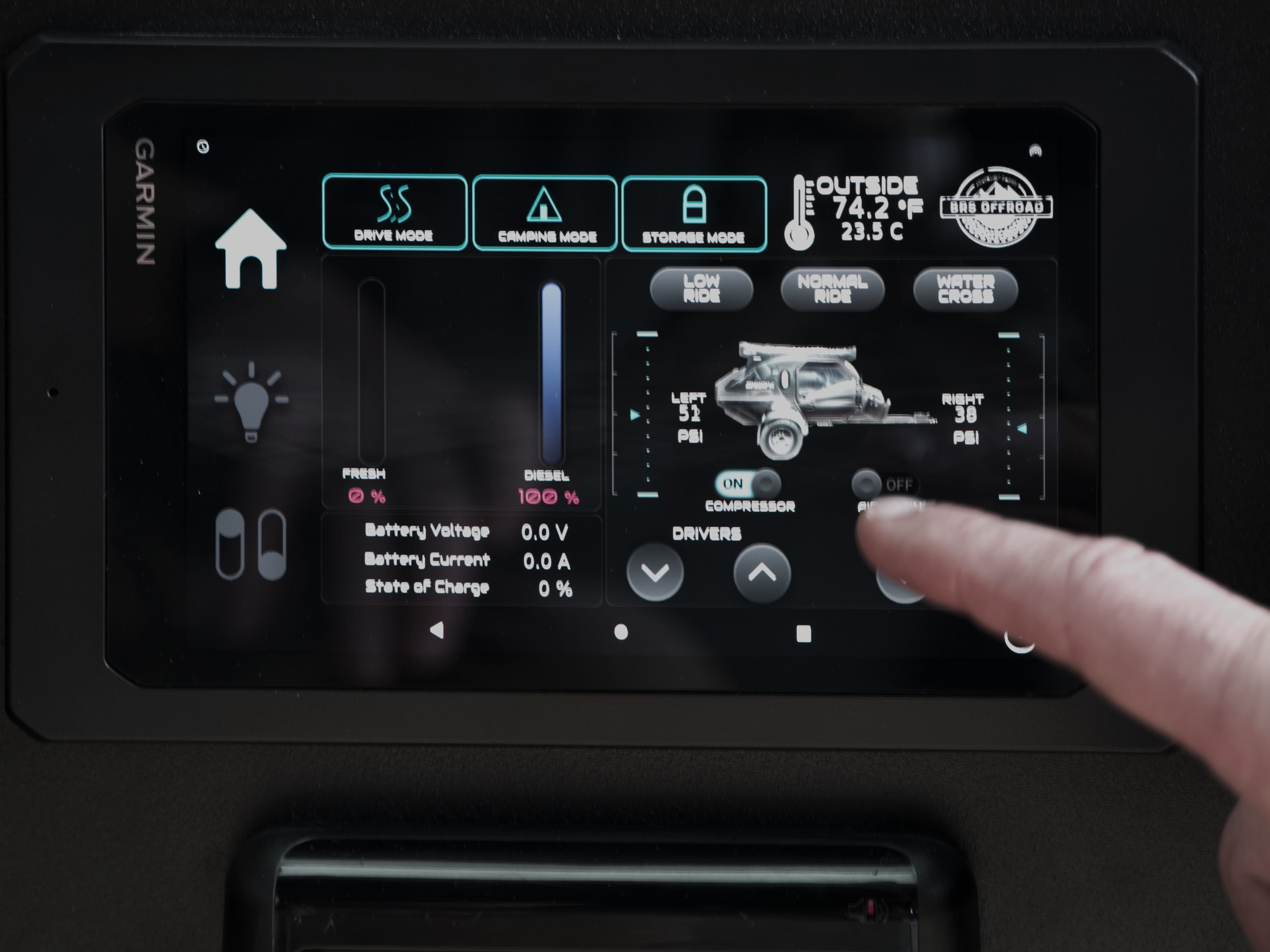

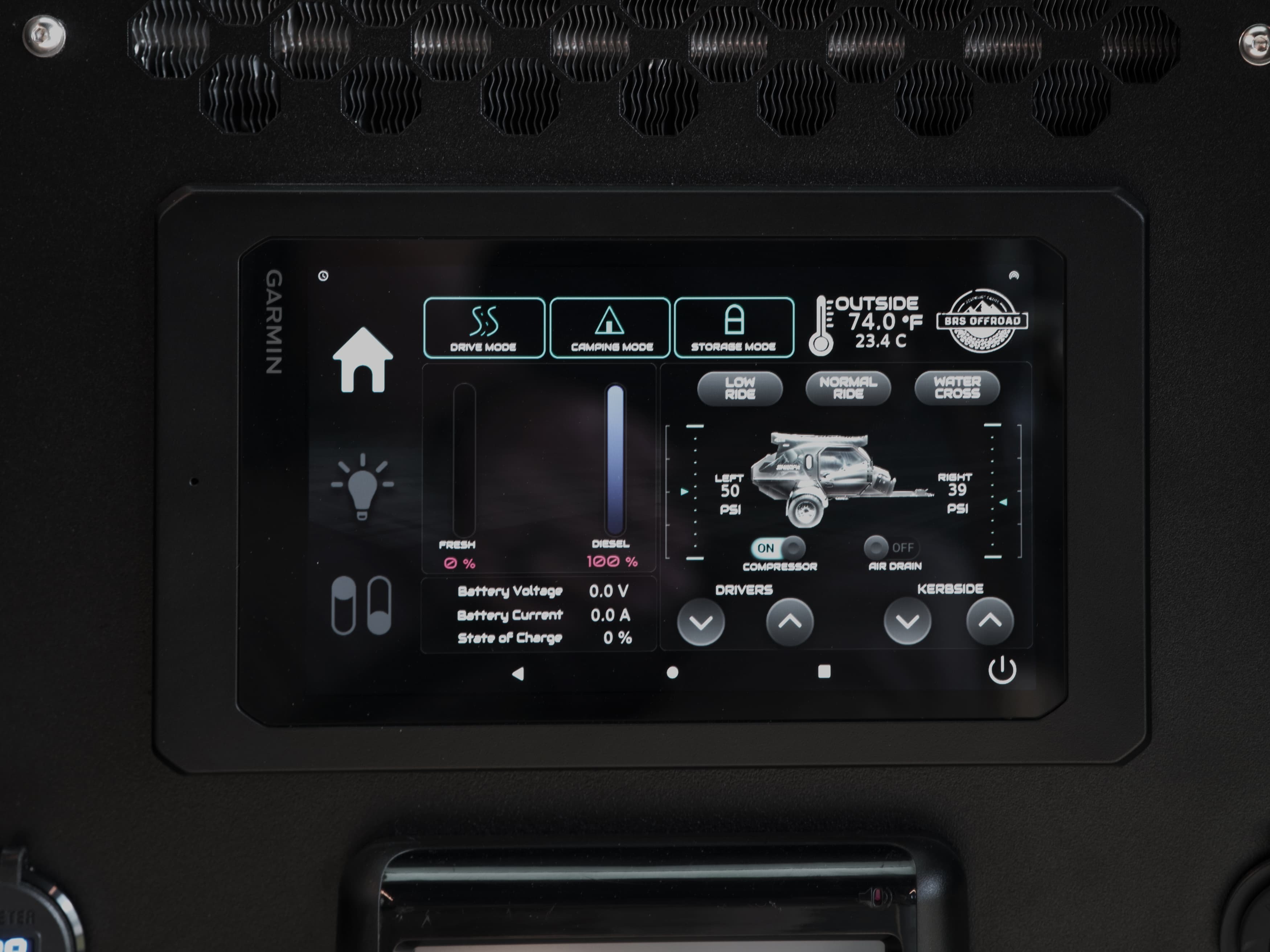

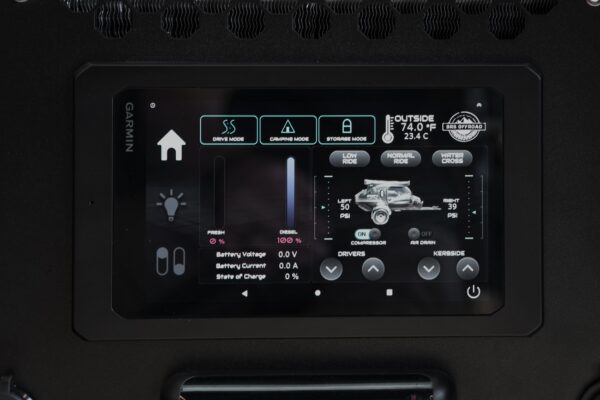

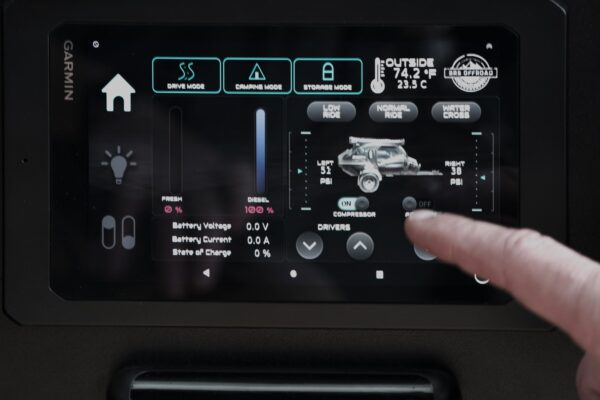

Integrated Garmin Control System
A centralized Garmin control interface provides real-time visibility into power, water, and system status throughout the Sherpa. Key systems can also be monitored and controlled remotely through a mobile app, allowing adjustments before arrival or from anywhere at camp.
